TP-Link Omada POE160S

TP-Link Omada POE160S Gigabit PoE+ 80.2.3t 30W Injector – Centralized Cloud Management Via Web OR Omada App

TP-Link Omada POE160S Gigabit PoE+ 80.2.3t 30W Injector – Centralized Cloud Management Via Web OR Omada App

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W

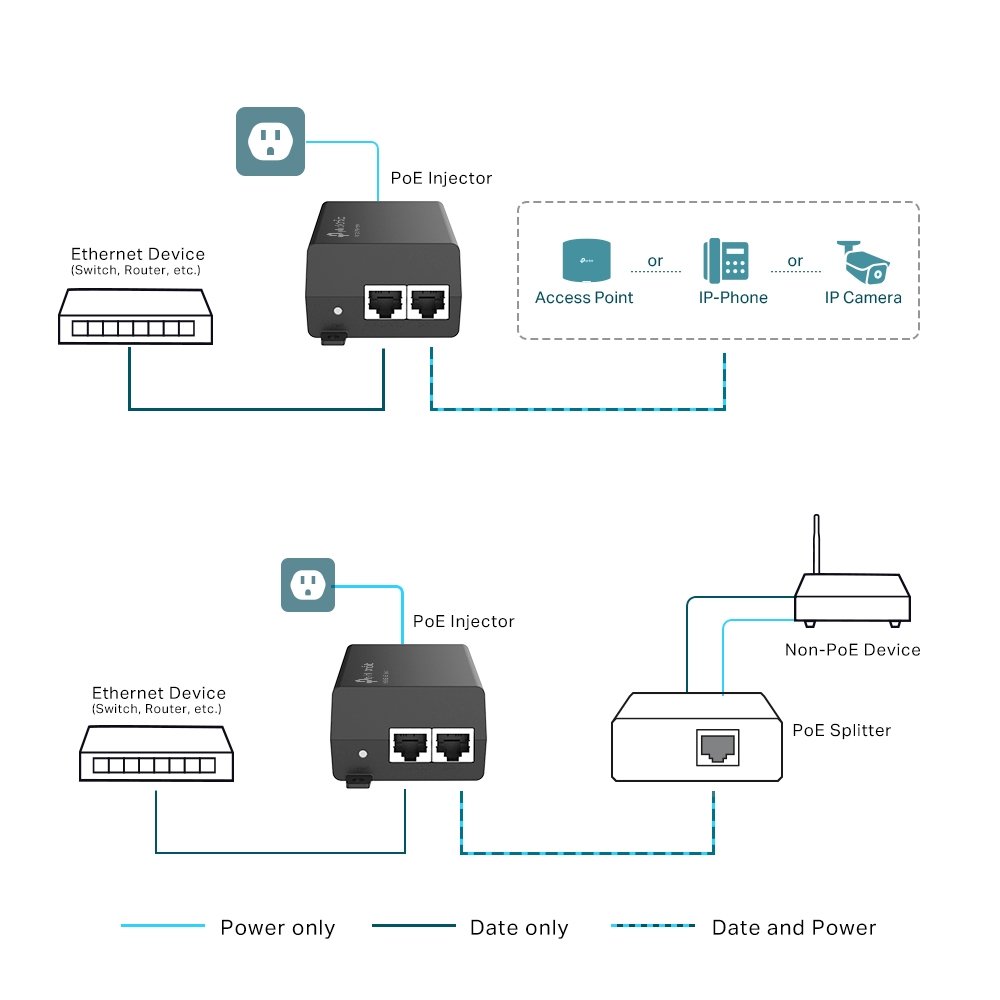

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device’s need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
5 years limited b2b warranty

HARDWARE FEATURES
Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

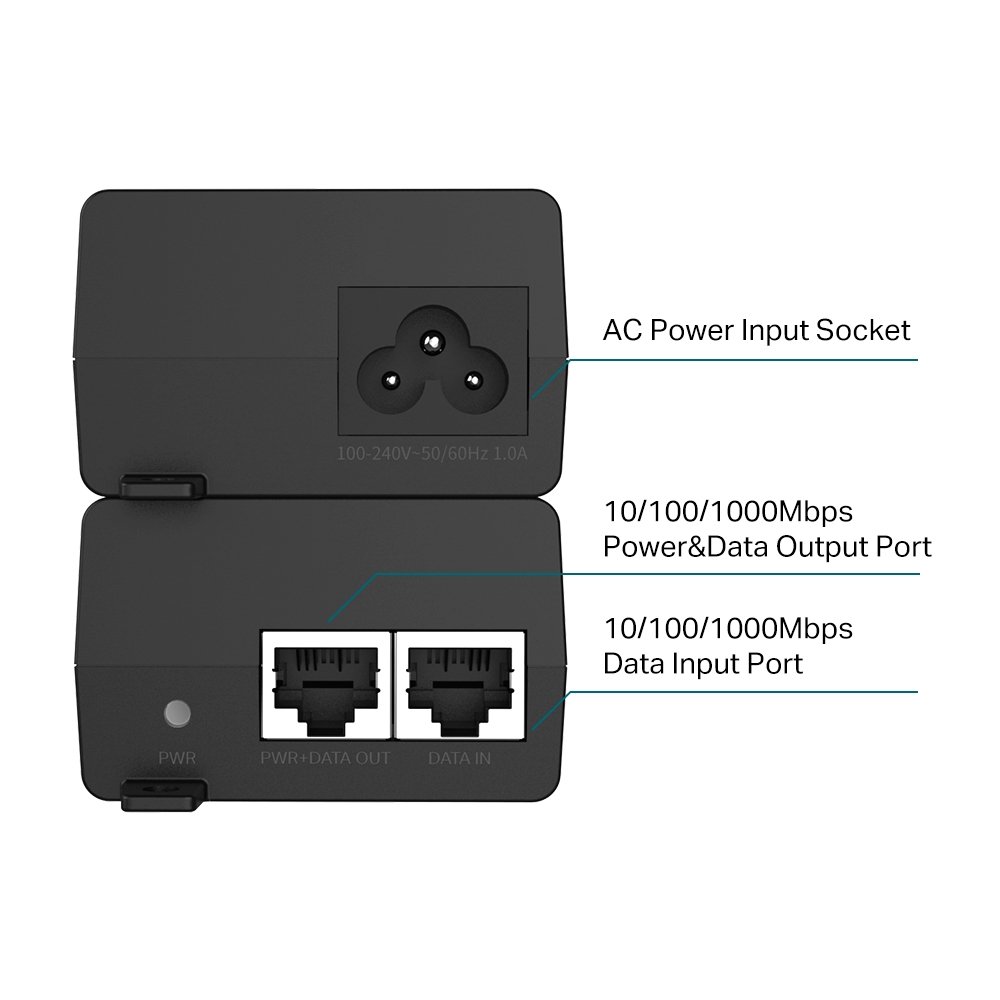

Interface	• 1 10/100/1000Mbps RJ45 data-in port • 1 10/100/1000Mbps RJ45 power+data-out port • 1 AC socket
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Max. Power Consumption	• Input: 100-240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function	• Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play
LED	Power / PoE
Dimensions ( W x D x H )	4.9×2.3×1.4 in (125×59.4×36.8 mm)

OTHERS
Certification	FCC, CE, RoHS
Package Content	• POE160S • Installation Guide • Power Cord • Wall Mounting Kits
Environment	• Operating Temperature: 0°C to 40°C (32°F to 104°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing
