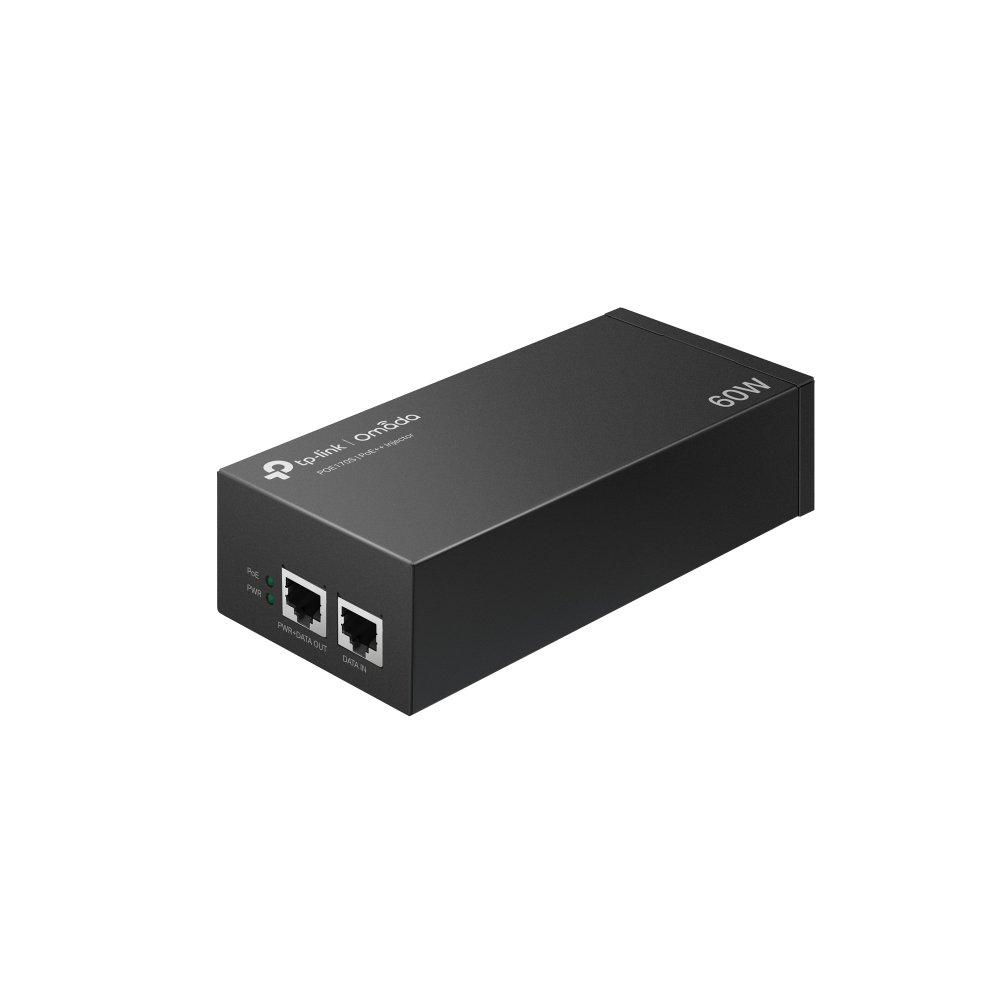

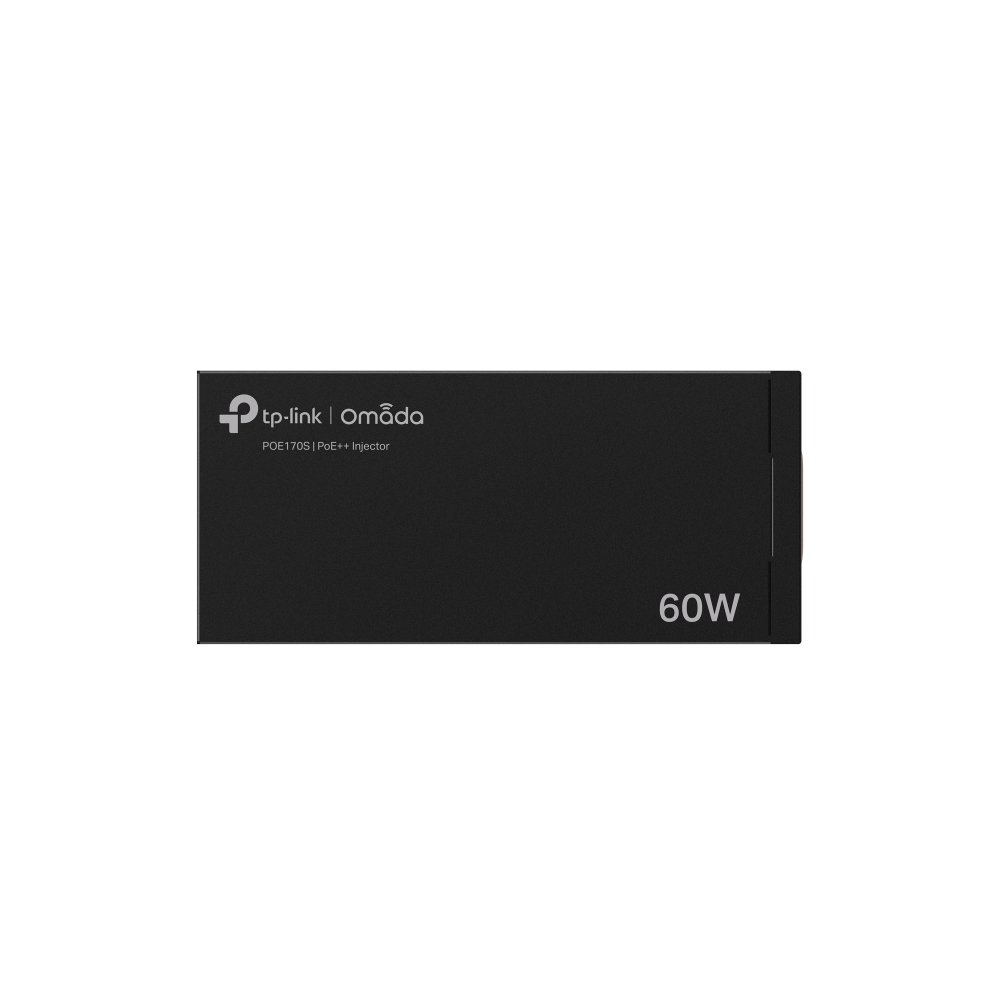

TP-Link Omada POE170S
TP-Link Omada POE170S Gigabit PoE++ 80.2.3at 60W Injector – Centralized Cloud Management Via Web OR Omada App
SKU: POE170S
Categories: Networking Products, PoE Injectors
Tags: 60w, 802.3at, Gigabit, IP, Network, Omada, PoE, PoE Injector, Smart Managed, TP-Link
TP-Link Omada POE170S Gigabit PoE++ 80.2.3at 60W Injector – Centralized Cloud Management Via Web OR Omada App
Key Features :-
- Two Gigabit ports
- Complies with IEEE802.3af/at/bt (type 3) standards, supplies up to 60W
- Transmitting data and power to PoE devices via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device’s need
- Wall-mounting and desktop design
- Plug & Play installation
- Durable metal casing
- 5 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
| Interface | • 1× 10/100/1000Mbps RJ45 data-in port • 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) • 1× AC socket |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m) |
| Max. Power Consumption | • Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 60 W) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| LED | • Power • PoE |
| Dimensions ( W x D x H ) | 6.1×2.8×1.7 in (155×70×42 mm) |
| GENERAL | |
|---|---|
| Material | Metal Casing |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • Omada PoE++ Injector POE170S • Installation Guide • Power Cord • RJ45 Cable |
| Environment | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
