Trojan Prox Rex
Trojan Prox Rex Touch To Exit / Request To Exit Unit – Used in Electronic Access Control – Supports 9~16VDC Input – 2 Sets of N/O & N/C Outputs
SKU: Prox Rex
Categories: Access Control, Access Control Accessories
Tags: Access Control, Door Release, Prox-Rex, Request to Exit, Touch to Exit, Trojan
Trojan Prox Rex Touch To Exit / Request To Exit Unit – Used in Electronic Access Control – Supports 9~16VDC Input – 2 Sets of N/O & N/C Outputs

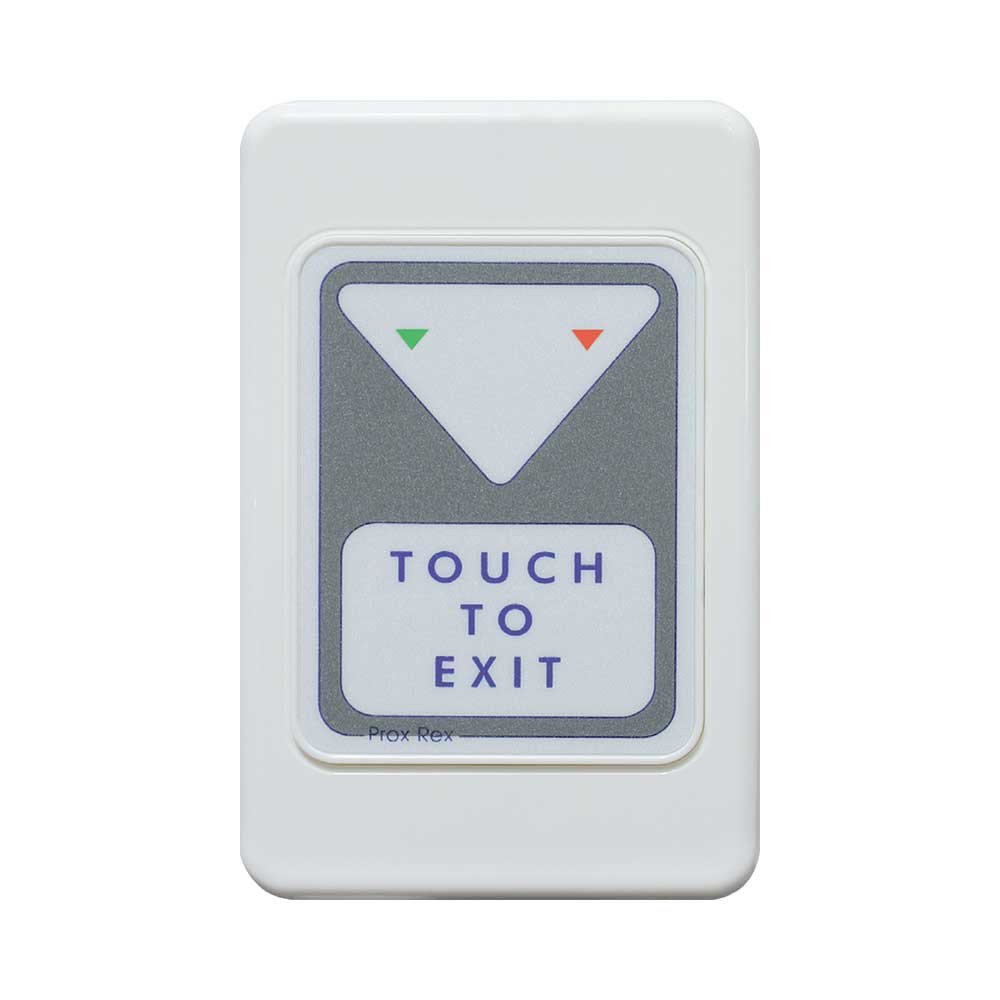

The Prox Rex® (Touch to Exit) is a touch activated egress unit designed for use with Access Control Systems and is an ideal replacement for conventional push buttons, door release buttons and call switches.
Key Features :-
- Requires only a light touch to activate, making it perfect for fast and easy egress and an advantage for the elderly and people with accessibility needs
- Vandal-Resistant – all components are behind the plate
- A perfect replacement for door release buttons in high usage areas
- No moving parts
- Ideal for areas where infection control is important
- Easy to clean and fade resistant
- Two LED indicators provide visual confirmation, Red for heartbeat and Green for activated
- Built-in sounder to provide audible confirmation of activation
- A Weather Protected version is also available
- Single gang profile fits a standard New Zealand and Australian electrical flush box (95mm H, 60mm W, 50mm D)
- Power requirement of 12Vdc
- Current Draw – Standby: 12mA @ 13.6Vdc
- Current Draw – Activated: 48mA @ 13.6Vdc
- Two sets of clean N/O and N/C outputs
- The contacts are rated at 1A, 30Vdc
- The unit is fully self-calibrating to ensure reliable operation
- The faceplate is made from durable materials and is easily cleaned
- RCM, CE & RoHS Certified
