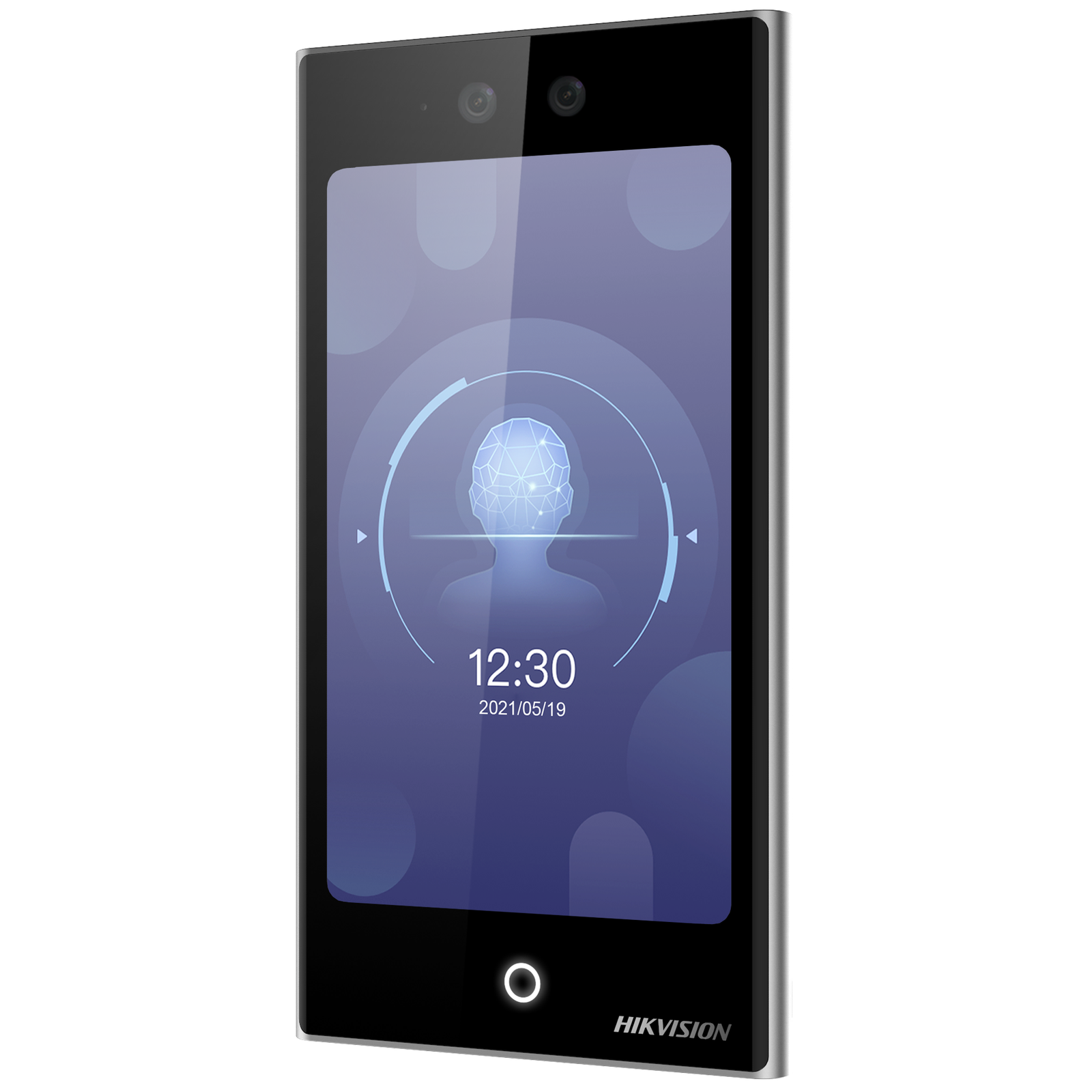

Hikvision DS-K1T673DWX Pro Series WiFi IP Face Recognition Access Control Unit – 7″ LCD Touchscreen – 2MP Camera – Built-in Mifare Card-Reader – Face Mask Detection
Hikvision DS-K1T673DWX Pro Series WiFi IP Face Recognition Access Control Unit – 7″ LCD Touchscreen – 2MP Camera – Built-in Mifare Card-Reader – Face Mask Detection
Key Features:-
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
- Can be used for Time & Attendance Solution
- Hikvision Intercom Online Designer Tool
Display
- Screen size: 7 inch
- Operation method: Capacitive touch screen
- Type: IPS
Video
- Lens: 2
- Resolution: 2MP
- FOV: HFOV = 75.5°; VFOV = 41.5°; DFOV = 87°
Audio
- Audio quality: Built-in omnidirectional microphone
Network
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
Interface
- Network interface: 1* RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1* RS-485 (Half duplex, HIKVISION)
- Wiegand: 1* Wiegand (Hik 26bit,Hik 34bit)
- USB: 1 (For Module)
- Audio output interface: 1 (3.5 mm)
Authentication
- Card type: M1 card; Felica card; DESfire card
General
- Power supply: 12 VDC to 24 VDC, 2 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (no condensing)
- Protective level: IP65
- Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
- Gross Weight: 1.06 kg (2.34 lb)
- Net Weight：0.57 kg (1.26 lb)
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish
Function
- Face anti-spoofing: Support
Recommendations
- Use PoE Ethernet instead of Wi-Fi whenever possible.
- Ensure the device is connected to a 2.4 GHz Wi-Fi network (not 5 GHz).
- Assign a static IP address.
- Upgrade to the latest firmware.
Using Hikvision access control systems can be advantageous when you want an integrated solution that combines door access, video surveillance, intercoms, alarms, and attendance management under a single platform.
Main reasons to use Hikvision access control
1. Unified security platform
Hikvision access controllers integrate directly with Hikvision:
- IP cameras
- Video intercoms
- NVRs
- Alarm systems
- Time & attendance devices
Using Hikvision software, events such as card swipes, denied access, door forced-open alarms, and facial recognition matches can be viewed alongside video footage.
2. Multiple authentication methods
Depending on the model, users can authenticate using:
- RFID cards
- PIN codes
- QR codes
- Mobile credentials
- Bluetooth
- Fingerprints
- Facial recognition
This provides flexibility for different security levels and budgets.
3. Strong video integration
One of Hikvision’s biggest strengths is linking access events to camera footage:
- View video associated with a door event.
- Search footage by cardholder.
- Investigate tailgating or unauthorized access.
- Receive pop-up video when access alarms occur.
4. Facial recognition capabilities
Advanced terminals such as the DS-K1T673 Series and DS-K1T671 Series support:
- Fast face authentication
- Mask detection
- Anti-spoofing
- Card + face authentication
This reduces reliance on physical cards and can improve user convenience.
5. Scalability
Hikvision systems can scale from:
- A single office door
- Small commercial premises
- Schools
- Warehouses
- Multi-building sites
Controllers are available in:
- 1-door
- 2-door
- 4-door
- 8-door configurations
allowing expansion as requirements grow.
6. Cost-effective solution
Compared with enterprise systems such as:
- Gallagher
- LenelS2
- Genetec
Hikvision often delivers a lower hardware and licensing cost while providing many features required by small and medium businesses.
7. Time and attendance functions
Many Hikvision terminals can also record:
- Staff attendance
- Shift start/end times
- Late arrivals
- Reports and exports
This can eliminate the need for a separate attendance system.
8. Mobile management
Administrators can:
- Add users
- Issue credentials
- Review events
- Unlock doors remotely
through Hikvision management software and supported mobile applications.
Best applications
Hikvision access control is well suited to:
- Offices
- Schools
- Warehouses
- Apartment buildings
- Retail stores
- Small to medium commercial sites
