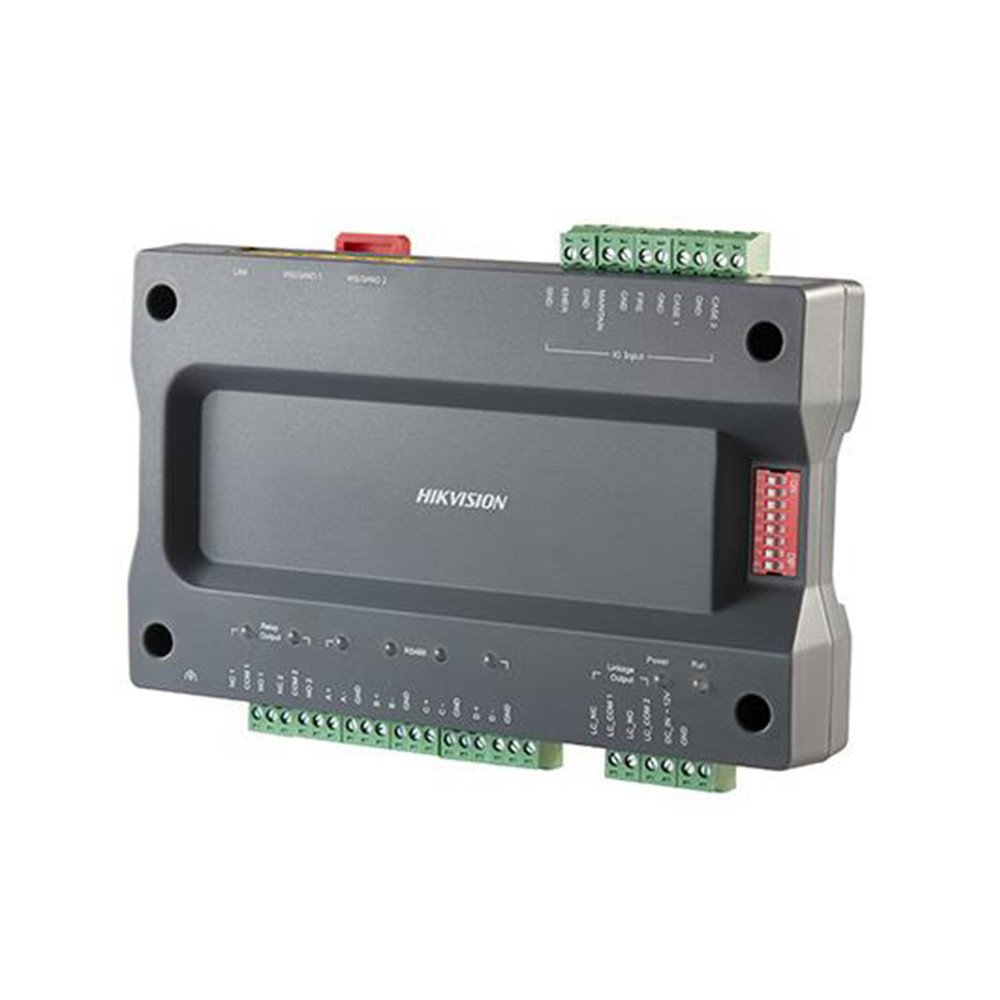

Hikvision DS-K2210

Device Interface

• Communication: TCP/IP;RS-485, and Wiegand
• Input Interface: 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
• Output Interface: 5 Relay Outputs
• Internal Clock: Support
• RTC: Support

General

• Working Temperature: -40°F to 158°F
• Working Humidity: 0% to 90% (No Condensation)
• Power Supply: 12 VDC±15%
• Installation: Guide Rail Installation
• Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm

System Parameter

• Processor: 32 bit
• Indicator: Power On: Solid Green,Running Properly: Flashing Green,Running Exception: Solid Red,Serial Port Not Communicating: Off,Serial Port Communicating: Solid Green,Relay NC: Off,Relay NO: Solid Green,Network Disconnected: Off,Network Cable Connected: Solid Yellow, Flashing Green,Network Armed: Solid Yellow, Flashing Green,
• Card Reader: Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers

Using Hikvision access control systems can be advantageous when you want an integrated solution that combines door access, video surveillance, intercoms, alarms, and attendance management under a single platform.

Main reasons to use Hikvision access control

1. Unified security platform

Hikvision access controllers integrate directly with Hikvision:

• IP cameras
• Video intercoms
• NVRs
• Alarm systems
• Time & attendance devices

Using Hikvision software, events such as card swipes, denied access, door forced-open alarms, and facial recognition matches can be viewed alongside video footage.

2. Multiple authentication methods

Depending on the model, users can authenticate using:

• RFID cards
• PIN codes
• QR codes
• Mobile credentials
• Bluetooth
• Fingerprints
• Facial recognition

This provides flexibility for different security levels and budgets.

3. Strong video integration

One of Hikvision’s biggest strengths is linking access events to camera footage:

• View video associated with a door event.
• Search footage by cardholder.
• Investigate tailgating or unauthorized access.
• Receive pop-up video when access alarms occur.

4. Facial recognition capabilities

Advanced terminals such as the DS-K1T673 Series and DS-K1T671 Series support:

• Fast face authentication
• Mask detection
• Anti-spoofing
• Card + face authentication

This reduces reliance on physical cards and can improve user convenience.

5. Scalability

Hikvision systems can scale from:

• A single office door
• Small commercial premises
• Schools
• Warehouses
• Multi-building sites

Controllers are available in:

• 1-door
• 2-door
• 4-door
• 8-door configurations

allowing expansion as requirements grow.

6. Cost-effective solution

Compared with enterprise systems such as:

• Gallagher
• LenelS2
• Genetec

Hikvision often delivers a lower hardware and licensing cost while providing many features required by small and medium businesses.

7. Time and attendance functions

Many Hikvision terminals can also record:

• Staff attendance
• Shift start/end times
• Late arrivals
• Reports and exports

This can eliminate the need for a separate attendance system.

8. Mobile management

Administrators can:

• Add users
• Issue credentials
• Review events
• Unlock doors remotely

through Hikvision management software and supported mobile applications.

Best applications

Hikvision access control is well suited to:

• Offices
• Schools
• Warehouses
• Apartment buildings
• Retail stores
• Small to medium commercial sites
