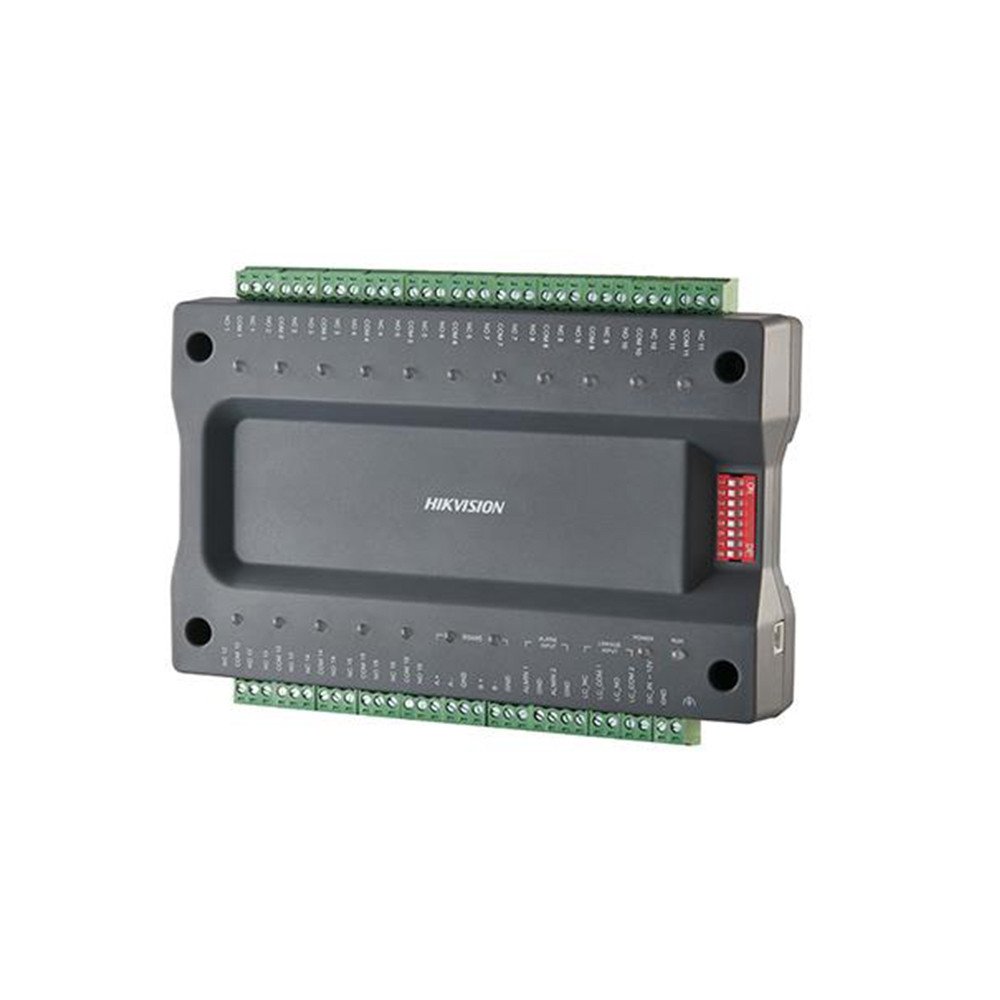

Hikvision DS-K2M0016A
Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V
Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V
Key Features :-
- Model – DS-K2M0016A
- Distributed elevator controller
- Connectable with up to 16 relays to control floor buttons in the elevator
- RS-485 communication with the master elevator controller
- DIP switch settings for device address and relay types
- Up to 8 distributed elevator controllers can be linked to the master elevator controller
- Control the elevator via the relay
- 2 x RS-485 Interface
- 2 x Alarm Input
- 16 x Relay Outputs
- 1 x Buzzer
- Working Temperature: -40°F to 158°F
- Working Humidity: 0% to 90% (No Condensation)
- Power Supply: 12VDC ± 15%
- Guide Rail Installation
- Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm
- 32 bit Processor
Device Interface
- RS-485 Interface: 2
- Alarm Input: 2
- Relay Output: 16
- Buzzer: 1
General
- Working Temperature: -40°F to 158°F
- Working Humidity: 0% to 90% (No Condensation)
- Power Supply: 12 VDC±15%
- Installation: Guide Rail Installation
- Tamper-Proof: 1
- Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm
System Parameter
- Processor: 32 bit
Using Hikvision access control systems can be advantageous when you want an integrated solution that combines door access, video surveillance, intercoms, alarms, and attendance management under a single platform.
Main reasons to use Hikvision access control
1. Unified security platform
Hikvision access controllers integrate directly with Hikvision:
- IP cameras
- Video intercoms
- NVRs
- Alarm systems
- Time & attendance devices
Using Hikvision software, events such as card swipes, denied access, door forced-open alarms, and facial recognition matches can be viewed alongside video footage.
2. Multiple authentication methods
Depending on the model, users can authenticate using:
- RFID cards
- PIN codes
- QR codes
- Mobile credentials
- Bluetooth
- Fingerprints
- Facial recognition
This provides flexibility for different security levels and budgets.
3. Strong video integration
One of Hikvision’s biggest strengths is linking access events to camera footage:
- View video associated with a door event.
- Search footage by cardholder.
- Investigate tailgating or unauthorized access.
- Receive pop-up video when access alarms occur.
4. Facial recognition capabilities
Advanced terminals such as the DS-K1T673 Series and DS-K1T671 Series support:
- Fast face authentication
- Mask detection
- Anti-spoofing
- Card + face authentication
This reduces reliance on physical cards and can improve user convenience.
5. Scalability
Hikvision systems can scale from:
- A single office door
- Small commercial premises
- Schools
- Warehouses
- Multi-building sites
Controllers are available in:
- 1-door
- 2-door
- 4-door
- 8-door configurations
allowing expansion as requirements grow.
6. Cost-effective solution
Compared with enterprise systems such as:
- Gallagher
- LenelS2
- Genetec
Hikvision often delivers a lower hardware and licensing cost while providing many features required by small and medium businesses.
7. Time and attendance functions
Many Hikvision terminals can also record:
- Staff attendance
- Shift start/end times
- Late arrivals
- Reports and exports
This can eliminate the need for a separate attendance system.
8. Mobile management
Administrators can:
- Add users
- Issue credentials
- Review events
- Unlock doors remotely
through Hikvision management software and supported mobile applications.
Best applications
Hikvision access control is well suited to:
- Offices
- Schools
- Warehouses
- Apartment buildings
- Retail stores
- Small to medium commercial sites
