Hikvision DS-K2M061

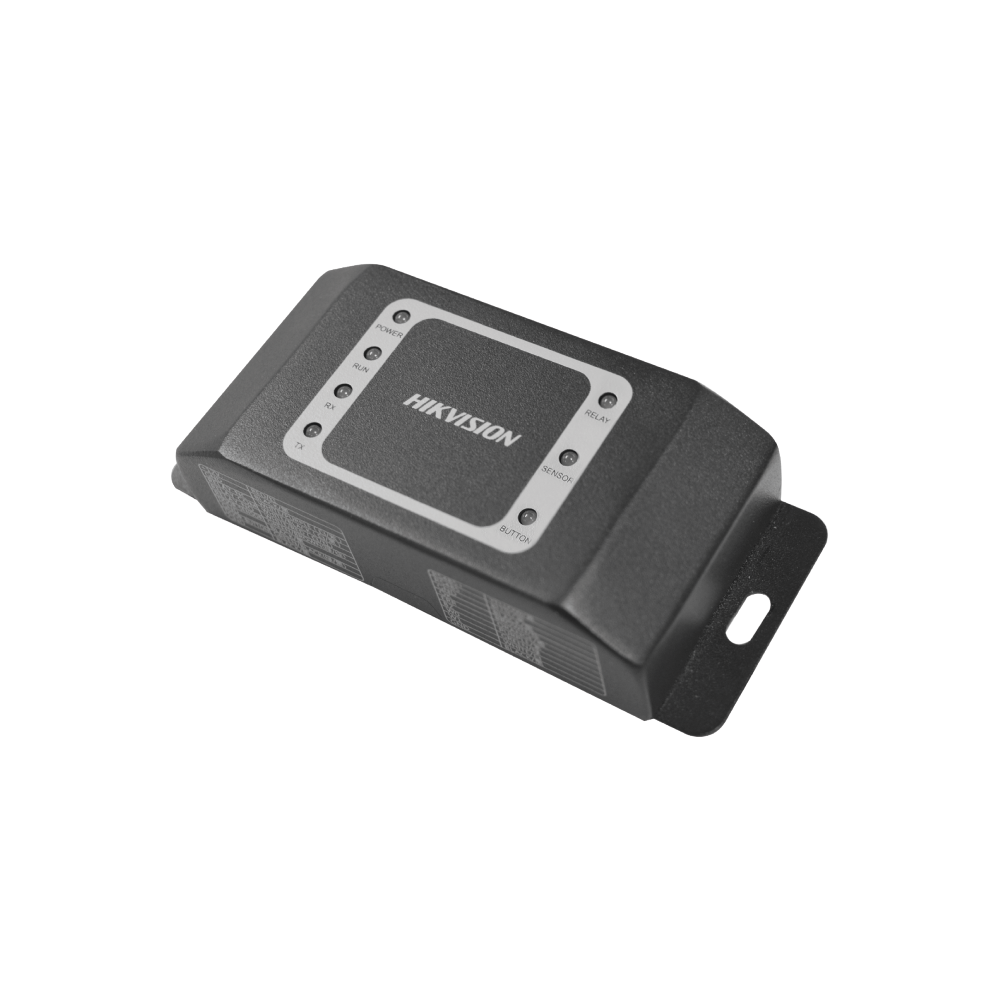

Hikvision DS-K2M061 Access Control / Intercom Secure Door Control Module – 12VDC Powered
Hikvision DS-K2M061 Access Control / Intercom Secure Door Control Module – 12VDC Powered
The Hikvision DS-K2M061 is a secure door control module designed to enhance the security of access control systems, particularly when paired with Hikvision terminals (e.g., MinMoe face recognition terminals). It acts as a secure intermediary between the access reader and the door lock.
Key Features:-
- Tamper-Proof Security: The module prevents the door from being opened if the card reader or intercom is removed or tampered with, as the lock is controlled directly by the module rather than the reader.
- RS-485 Communication: It communicates with the main access control terminal via RS-485, executing commands such as opening, closing, or setting the door to normally open/closed.
- Input Management: It gathers signals from connected, authorized hardware, including door magnetic sensors, exit buttons, and anti-tamper mechanisms.
- Wiegand Reader Support: It features a Wiegand interface, allowing for the connection of an external card reader to control access.
- Fire Alarm Integration: The module supports a fire interface and can be configured to interact with fire alarms for automatic unlocking.
- ID Configuration: It uses a 4-ch DIP switch to configure its ID for identification within a larger access system
- High-Security Doors: Used in commercial buildings, data centers, and financial institutions to prevent unauthorized entry.
- Intercom Systems: Commonly used with video intercom door stations (e.g., DS-KV8 series) to provide secure lock control.
Interface
- Lock Control: 1
- Exit Button: 1
- Door Contact Input: 1
- Alarm Input: 2
- Alarm Output: 1
- RS-485: 1
- Wiegand: 1
General
- Indicator: 1 for power supply
- Power Supply: 12 VDC 0.5A
- Working Temperature: -40 °C to 70 °C
- Working Humidity: 0% to 90%
- Dimensions: 48 mm × 115 mm × 26 mm (1.9″ × 4.5″ × 1.0″)
- Installation: Wall Mounting
Using Hikvision access control systems can be advantageous when you want an integrated solution that combines door access, video surveillance, intercoms, alarms, and attendance management under a single platform.
Main reasons to use Hikvision access control
1. Unified security platform
Hikvision access controllers integrate directly with Hikvision:
- IP cameras
- Video intercoms
- NVRs
- Alarm systems
- Time & attendance devices
Using Hikvision software, events such as card swipes, denied access, door forced-open alarms, and facial recognition matches can be viewed alongside video footage.
2. Multiple authentication methods
Depending on the model, users can authenticate using:
- RFID cards
- PIN codes
- QR codes
- Mobile credentials
- Bluetooth
- Fingerprints
- Facial recognition
This provides flexibility for different security levels and budgets.
3. Strong video integration
One of Hikvision’s biggest strengths is linking access events to camera footage:
- View video associated with a door event.
- Search footage by cardholder.
- Investigate tailgating or unauthorized access.
- Receive pop-up video when access alarms occur.
4. Facial recognition capabilities
Advanced terminals such as the DS-K1T673 Series and DS-K1T671 Series support:
- Fast face authentication
- Mask detection
- Anti-spoofing
- Card + face authentication
This reduces reliance on physical cards and can improve user convenience.
5. Scalability
Hikvision systems can scale from:
- A single office door
- Small commercial premises
- Schools
- Warehouses
- Multi-building sites
Controllers are available in:
- 1-door
- 2-door
- 4-door
- 8-door configurations
allowing expansion as requirements grow.
6. Cost-effective solution
Compared with enterprise systems such as:
- Gallagher
- LenelS2
- Genetec
Hikvision often delivers a lower hardware and licensing cost while providing many features required by small and medium businesses.
7. Time and attendance functions
Many Hikvision terminals can also record:
- Staff attendance
- Shift start/end times
- Late arrivals
- Reports and exports
This can eliminate the need for a separate attendance system.
8. Mobile management
Administrators can:
- Add users
- Issue credentials
- Review events
- Unlock doors remotely
through Hikvision management software and supported mobile applications.
Best applications
Hikvision access control is well suited to:
- Offices
- Schools
- Warehouses
- Apartment buildings
- Retail stores
- Small to medium commercial sites
