Hikvision HIK4MPCVADIPCCTVKIT3

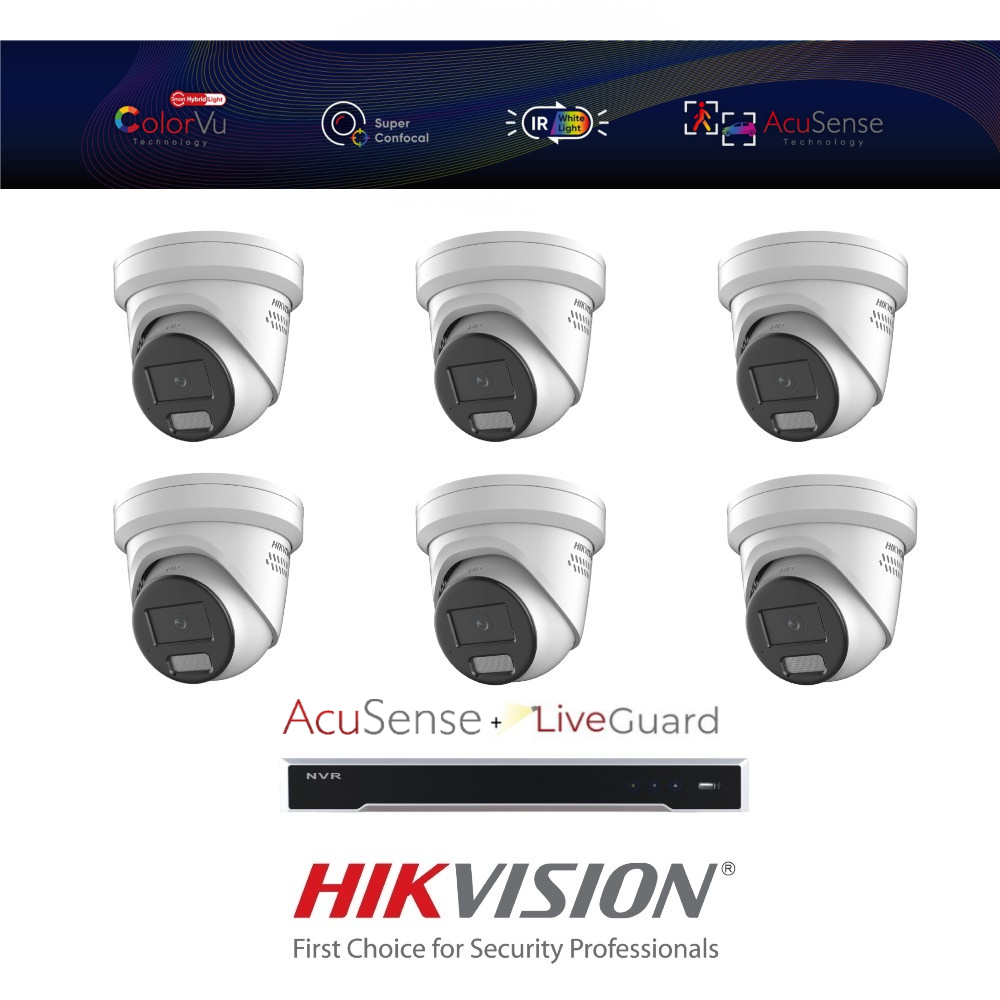

Hikvision HIK4MPCVADIPCCTVKIT3 4MP ColorVu IP CCTV Kit with 1* DS-7616NI-M2/16P-6TB NVR + 6 * DS-2CD2347G3-LIS2UY/SL-2.8MM 4MP ColorVu 3.0 Active-Deterrence Smart Hybrid Light IP Turret Cameras

The kit Includes :-

• 1 * Hikvision DS-7616NI-M2/16P 1U 4K 16-Channel 16x POE NVR with 6TB HDD – DS-7616NI-M2/16P-6TB
• 6 * Hikvision DS-2CD2347G3-LIS2UY/SL 4MP ColorVu 3.0 Active-Deterrence Smart Hybrid Light 2.8mm Turret Camera with Built-in Audio Mic + Speaker + Strobe + Siren ->  DS-2CD2347G3-LIS2UY/SL-2.8MM

NVR Features :-

• Third-party network cameras supported
• Up to 32MP resolution recording
• 1-ch HDMI & 1-ch VGA video Outputs
• HDMI at up to 8K (7680 x 4320) resolution
• 16-ch network cameras can be connected with 256Mbps incoming bandwidth
• Up to 2x SATA interfaces, Plug & Play with up to 16x independent PoE network interfaces
• Dual-OS to ensure high reliability of system running
• Various VCA detection alarm and VCA search
• Supports H.265+ / H.265 / H264+ / H264 video formats

Camera Features :-

• HikAI-ISP for excellent noise reduction effect
• Scene-adaptive WDR
• 4MP high resolution
• 2.8mm fixed lens
• Smart Hybrid Light: advanced technology with long range – Up to 30m White light with 30m IR Range
• Triple stream
• H.265+ compression
• 4 analytics
• Face Capture
• Focus on human and vehicle classification based on deep learning
• Audio and alarm interface available
• IP67 weatherproof
• 130dB wide dynamic range
• Built-in arrayed dual-microphone for real-time high quality audio security
• Built-in Speaker
• Built-in Strobe & Siren to warn intruders
• Supports onboard storage (up to 512GB)
• 12VDC & PoE (802.3af)
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)

Hikvision Product-Link -> DS-7616NI-M2/16P & DS-2CD2347G3-LIS2UY/SL

Hikvision ColorVu 3.0 is worth choosing when you need the best possible color image at night, especially in areas such as driveways, entrances, car parks, warehouses, retail stores, and residential properties.

Key advantages of ColorVu 3.0

1. Better night-time image quality

ColorVu 3.0 introduces HikAI-ISP (AI Image Signal Processing) which significantly reduces image noise and improves brightness in low-light conditions. This produces cleaner images with more visible details than earlier ColorVu generations.

2. Reduced motion blur

A common problem with night cameras is blurry people or vehicles. ColorVu 3.0 uses AI processing to reduce motion blur, making moving subjects easier to identify. This is particularly useful for:

• Vehicle identification
• Detecting intruders
• Monitoring busy areas at night

3. More accurate colours at night

The new 3D LUT Colour Correction technology improves colour accuracy and brightness, helping footage look more natural and making it easier to distinguish:

• Clothing colours
• Vehicle colours
• Objects and packages

4. Smart Hybrid Light

Unlike older ColorVu cameras that relied mainly on white LEDs, ColorVu 3.0 supports:

• IR mode
• White-light mode
• Smart Hybrid mode

In Smart mode, the camera can stay in IR and automatically switch to full-colour illumination when a person or vehicle is detected. This reduces light pollution while still capturing colour evidence.

5. Improved handling of difficult lighting

AI WDR (Wide Dynamic Range) automatically balances bright and dark areas without manual adjustment. This helps when cameras face:

• Headlights
• Doorways
• Shop windows
• Strong backlighting

6. Better audio on supported models

Many ColorVu 3.0 cameras include Audio 2.0, featuring:

• Dual microphones
• Improved noise reduction
• Louder speakers
• Better two-way audio communication
