Omada Networks Beam Bridge 5 UR KIT

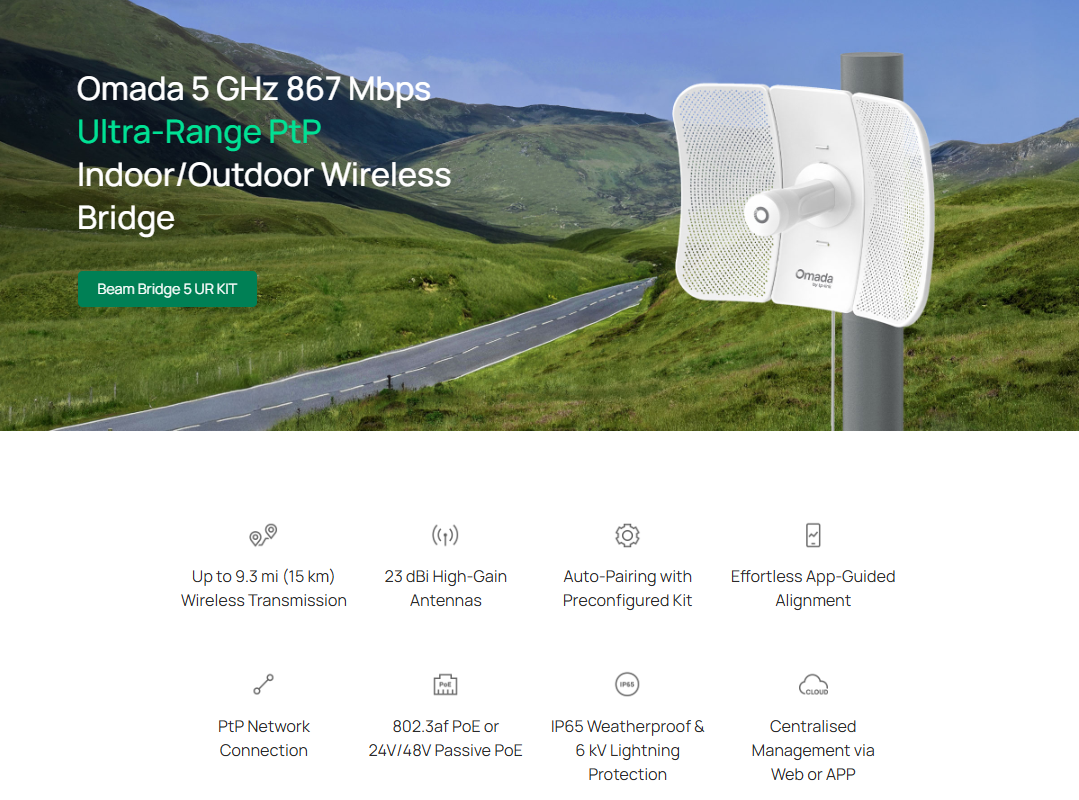

Omada Networks Beam Bridge 5 UR KIT 5GHz 867Mbps Ultra Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 15Kms Range – Supports 24VDC PoE and 48VDC PoE Input – 2* Passive PoE Injectors Included
Omada Networks Beam Bridge 5 UR KIT 5GHz 867Mbps Ultra Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 15Kms Range – Supports 24VDC PoE and 48VDC PoE Input – 2* Passive PoE Injectors Included
Key Features :-

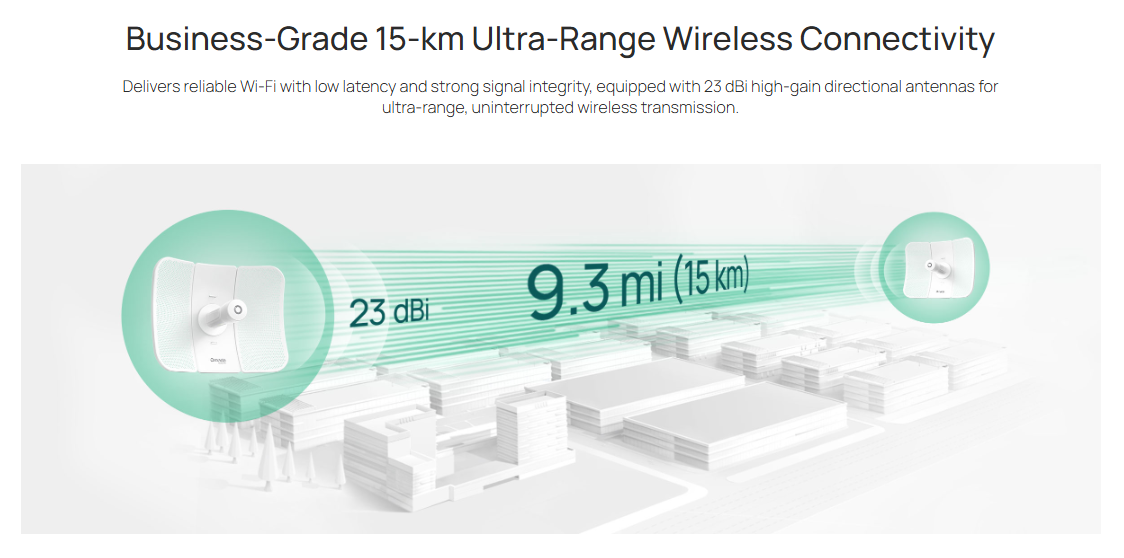

- Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.

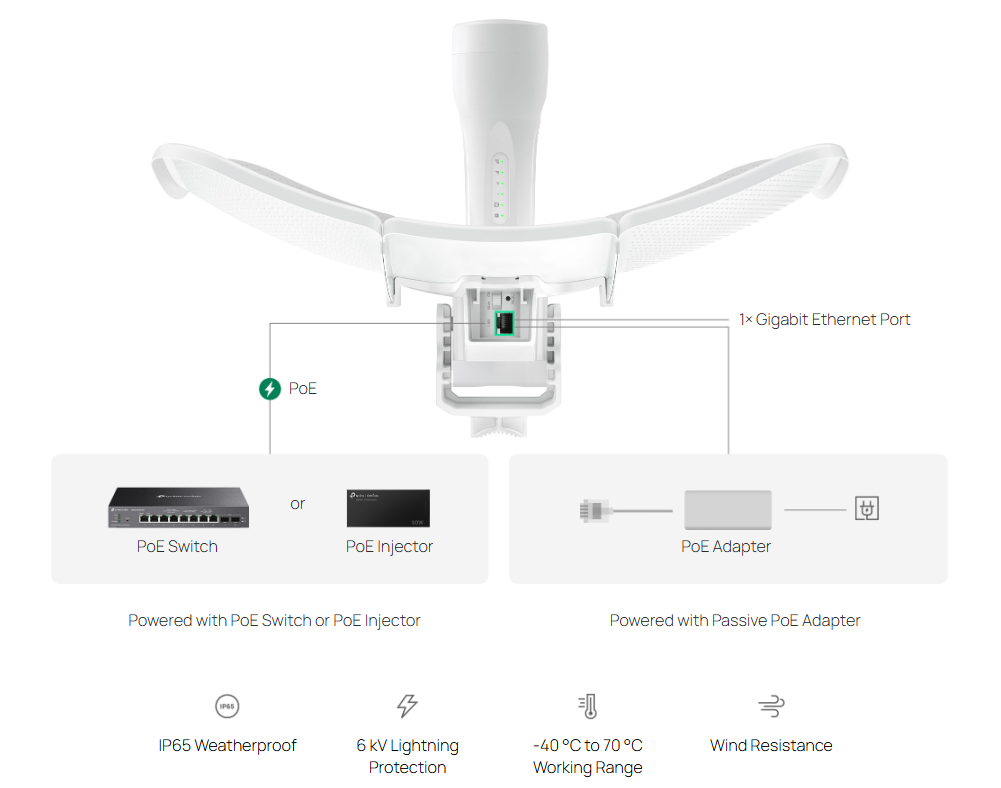

- Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
- Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button | 1 × Reset Button 1 × System Mode Selection Button |
| DIP Switch | Role Switch |
| Power Supply | 802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included) |
| Max. Power Consumption | 15.8W |
| Dimensions ( W x D x H ) | 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm) |
| Antenna | External 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi |
| Antenna Beamwidth | Horizontal: 9°, Vertical: 7° |
| Weatherproof Enclosure | IP65 |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |
| Mounting | Pole Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| Transmission Distance | 15 km (9.3 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2×2 MU-MIMO DL • Maximum number of associated STAs: 8 • Speed Test • Channel Optimization • Antenna Alignment • ACS (Automatic Channel Selection) • Rate Limit • Guest Network |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP) <30 dBm (5 GHz, U-NII-1/2C, ERIP)• FCC: <27 dBm (5 GHz, U-NII-1) <27 dBm (5 GHz, U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |
Beam Bridge 5 UR KIT Support Page
How to Setup and Configure TP-Link Omada EAP Mesh
How to establish a point-to-point connection with EAP-Bridge
TP-Link Omada Support Articles
Key Reasons to Choose Omada Networks
1. Centralized Management
Omada’s Software Defined Networking (SDN) platform allows you to manage routers, switches, and wireless access points from a single dashboard instead of configuring each device separately.
2. Cloud-Based Monitoring
You can remotely monitor and manage customer sites from anywhere using the Omada cloud platform and mobile app, making it ideal for MSPs and IT providers.
3. No Ongoing License Fees
Unlike some enterprise networking brands, Omada offers cloud management without recurring per-device licensing costs, reducing long-term ownership expenses.
4. Easy Multi-Site Deployment
Zero-touch provisioning allows devices to be shipped directly to a site and automatically configured when connected to the internet. This is particularly useful for chain stores, schools, and distributed businesses.
5. Complete Ecosystem
Omada offers:
- Security gateways/routers
- Managed PoE switches
- Indoor Wi-Fi access points
- Outdoor Wi-Fi access points
- Hardware controllers
- Software controllers
All devices integrate into a single management platform.
6. Strong Wi-Fi Performance
Modern Omada access points support:
- Wi-Fi 6
- Wi-Fi 6E
- Wi-Fi 7
- Seamless roaming
- Mesh networking
- High-density client environments
This makes them suitable for offices, schools, hotels, and apartment complexes.
7. Advanced Business Features
Omada supports:
- VLANs
- Guest networks
- VPNs
- Access Control Lists (ACLs)
- 802.1X authentication
- Traffic monitoring
- QoS
- Network segmentation
These features are important for cybersecurity and network performance.
8. Excellent Value for Money
Many installers compare Omada with:
- Ubiquiti
- Grandstream
- Cisco
- Aruba
Omada generally provides similar core SMB functionality at a lower hardware cost.
For Security & IT Professionals
Since you work with surveillance and IT systems, Omada is particularly attractive because:
- PoE switches can power IP cameras, access-control devices, intercoms, and APs.
- VLANs can isolate CCTV traffic from office networks.
- Remote management reduces support visits.
- Multi-site monitoring simplifies customer support.
- High-power PoE models support modern PTZ cameras and Wi-Fi bridges.
For many New Zealand installers, Omada is often the best balance of cost, features, and manageability, especially when compared with higher-priced enterprise networking brands.
