Omada Networks EAP100-BRIDGEKIT

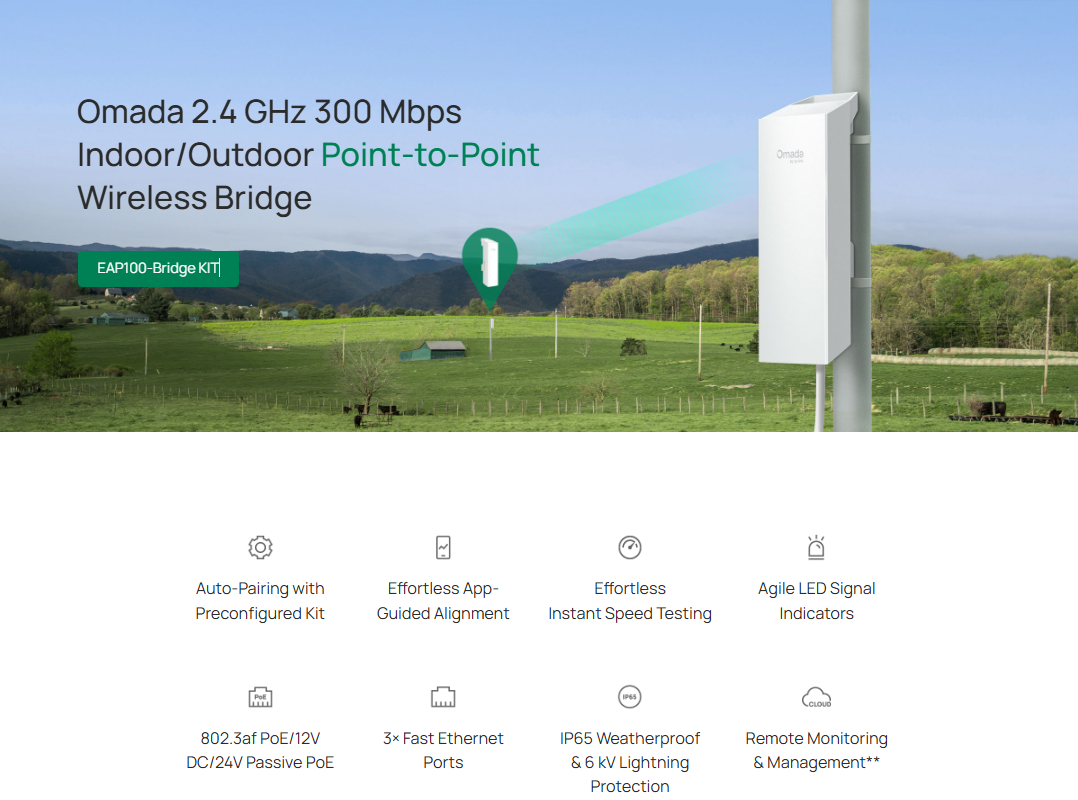

Omada Networks EAP100-BRIDGEKIT 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 500m Range – Supports 12VDC Input and 48VDC/24VDC PoE Input – PoE Injectors to be purchased seperately*
Omada Networks EAP100-BRIDGEKIT 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 500m Range – Supports 12VDC Input and 48VDC/24VDC PoE Input – PoE Injectors to be purchased seperately*
Key Features :-

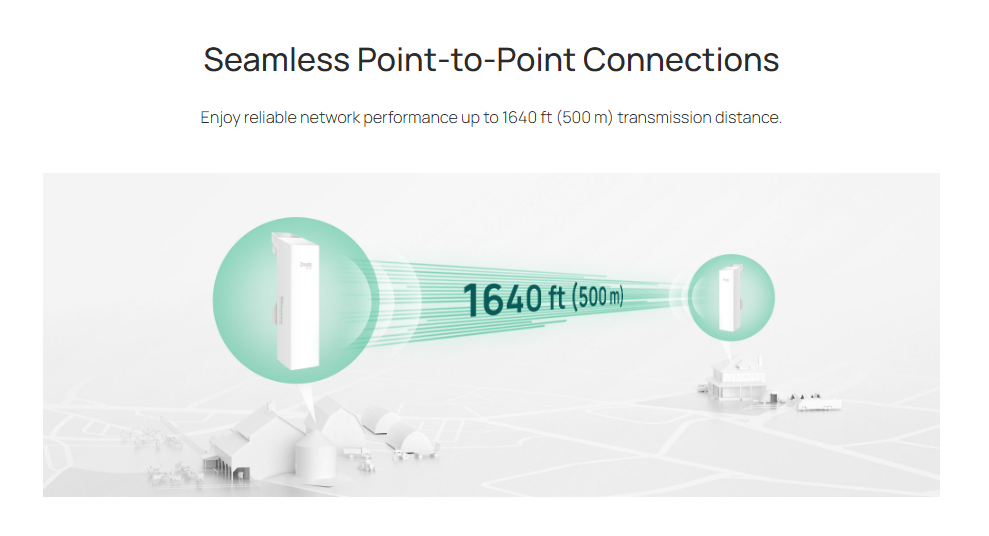

- Up to 1640 ft (500 m)Wi-Fi transmission *
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.

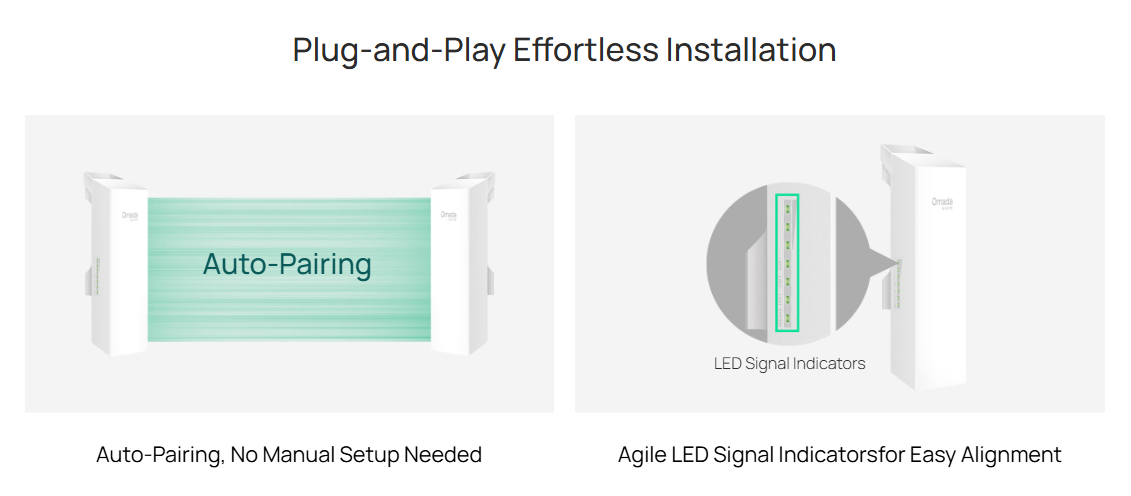

- Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
- App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.

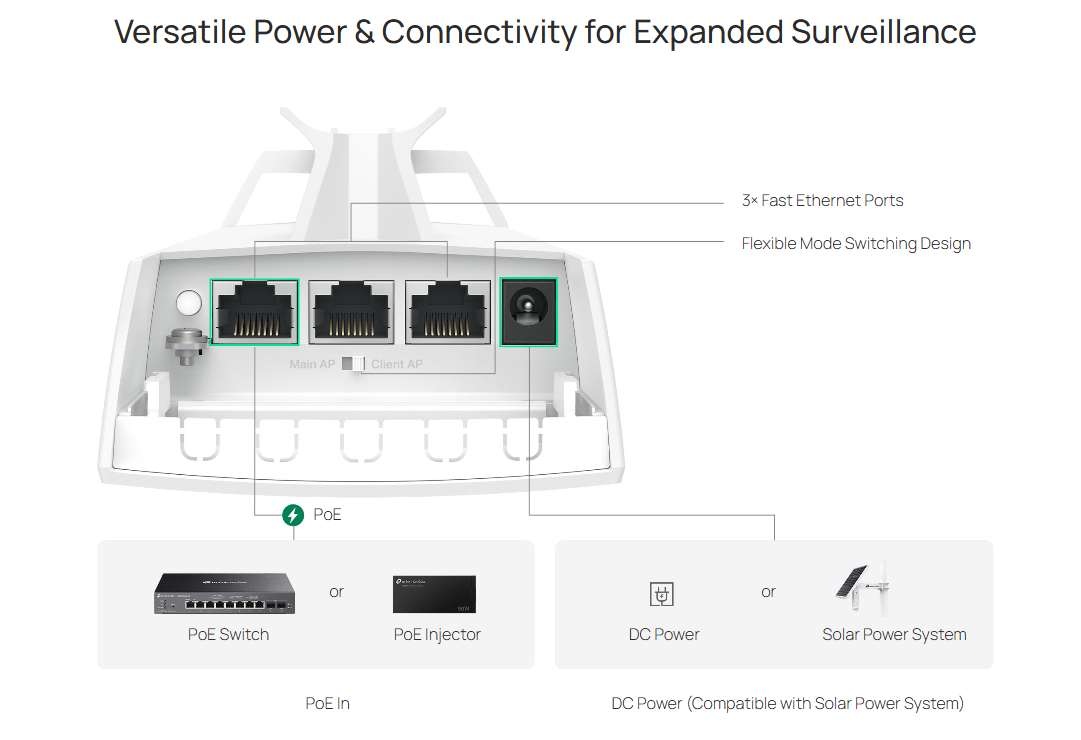

- Flexible Power Supply: 802.3af PoE (1,2pins; 3,6pins), 24V /48V Passive PoE (+4,5pins; -7,8pins), and 12V DC (compatible with TP-Link solar power supply systems).
- 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch. △
- Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉. **
- Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app. §
- PoE Injectors to be purchased seperately*
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x 10/100 Mbps Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC 802.3af PoE (1, 2pins; 3, 6pins) 24V Passive PoE / 48V Passive PoE (+4, 5pins; -7, 8pins) (12V DC Power Adapter and Passive PoE Injector Included – For Dry Indoor Use Only) |
| Max. Power Consumption | 4.8 W |
| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 2.4 GHz: 8.0 dBi Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 500 m (0.31 mi)* |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | • MIMO: 2.4G 2 × 2 MIMO • Mesh • Beamforming • Channel: 1-11 (US); 1-13 (EU) • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <20dBm (2.4 GHz, EIRP);• FCC: <22dBm (2.4 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada App |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP100-Bridge KIT • Installation Guide • Pole Mounting Kit • 12V DC Power Adapter • Passive PoE Injector |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
TL-EAP100-BRIDGEKIT Support Page
How to Setup and Configure TP-Link Omada EAP Mesh
How to establish a point-to-point connection with EAP-Bridge
TP-Link Omada Support Articles
Key Reasons to Choose Omada Networks
1. Centralized Management
Omada’s Software Defined Networking (SDN) platform allows you to manage routers, switches, and wireless access points from a single dashboard instead of configuring each device separately.
2. Cloud-Based Monitoring
You can remotely monitor and manage customer sites from anywhere using the Omada cloud platform and mobile app, making it ideal for MSPs and IT providers.
3. No Ongoing License Fees
Unlike some enterprise networking brands, Omada offers cloud management without recurring per-device licensing costs, reducing long-term ownership expenses.
4. Easy Multi-Site Deployment
Zero-touch provisioning allows devices to be shipped directly to a site and automatically configured when connected to the internet. This is particularly useful for chain stores, schools, and distributed businesses.
5. Complete Ecosystem
Omada offers:
- Security gateways/routers
- Managed PoE switches
- Indoor Wi-Fi access points
- Outdoor Wi-Fi access points
- Hardware controllers
- Software controllers
All devices integrate into a single management platform.
6. Strong Wi-Fi Performance
Modern Omada access points support:
- Wi-Fi 6
- Wi-Fi 6E
- Wi-Fi 7
- Seamless roaming
- Mesh networking
- High-density client environments
This makes them suitable for offices, schools, hotels, and apartment complexes.
7. Advanced Business Features
Omada supports:
- VLANs
- Guest networks
- VPNs
- Access Control Lists (ACLs)
- 802.1X authentication
- Traffic monitoring
- QoS
- Network segmentation
These features are important for cybersecurity and network performance.
8. Excellent Value for Money
Many installers compare Omada with:
- Ubiquiti
- Grandstream
- Cisco
- Aruba
Omada generally provides similar core SMB functionality at a lower hardware cost.
For Security & IT Professionals
Since you work with surveillance and IT systems, Omada is particularly attractive because:
- PoE switches can power IP cameras, access-control devices, intercoms, and APs.
- VLANs can isolate CCTV traffic from office networks.
- Remote management reduces support visits.
- Multi-site monitoring simplifies customer support.
- High-power PoE models support modern PTZ cameras and Wi-Fi bridges.
For many New Zealand installers, Omada is often the best balance of cost, features, and manageability, especially when compared with higher-priced enterprise networking brands.
