Omada Networks EAP211-BRIDGEKIT
Omada Networks EAP211-BRIDGEKIT 5GHz 867Mbps Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 1Km Range – Supports 12VDC Input and 24VDC PoE Input – 2 * Passive PoE Injectors Included
Omada Networks EAP211-BRIDGEKIT 5GHz 867Mbps Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 1Km Range – Supports 12VDC Input and 24VDC PoE Input – 2 * Passive PoE Injectors Included
Key Features :-
- 802.11ac for up to 867 Mbps on the 5GHz wireless data rate
- Ideal for long-range wireless transmission up to 1 km

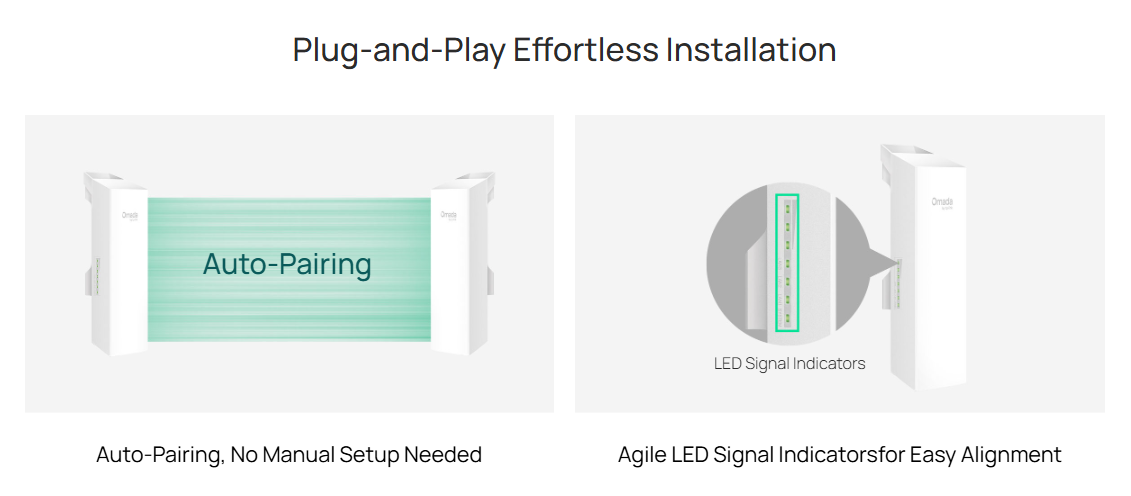

- Auto-pairing and agile LEDs for efficient deployment

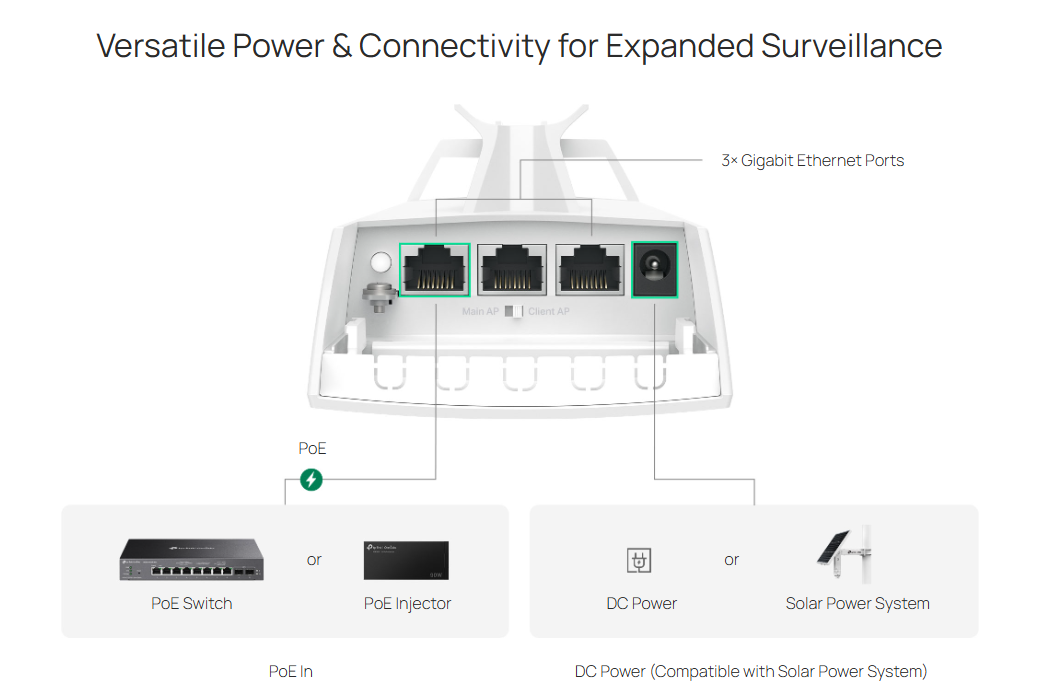

- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|

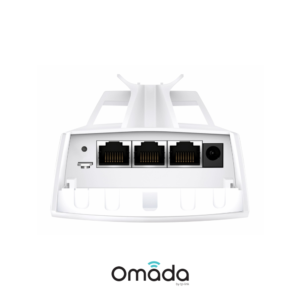

| Interface | 3x Gigabit Ethernet Ports*6 |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Max. Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 7.0 dBi Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole Mounting (Accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1000m(3280ft)5 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh*4 • MU-MIMO: 5G 2×2 MU-MIMO DL • Load Balance • Seamless Roaming(802.11r) • Beamforming • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP); <28.5dBm (5 GHz, band3, EIRP)• FCC: <22dBm (5 GHz, band1/4) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP211-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
2. All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
3. Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
4. These functions require the use of an Omada SDN controller.
5. Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
6. Non-Omada devices connected to the wired LAN ports will not be recognized by the Omada controllers, preventing users from viewing their connection status. To address this issue, connect those non-Omada devices to an Omada switch that links to the bridge’s wired LAN ports.
TL-EAP211-BRIDGEKIT Support Page
How to Setup and Configure TP-Link Omada EAP Mesh
How to establish a point-to-point connection with EAP-Bridge
TP-Link Omada Support Articles
Key Reasons to Choose Omada Networks
1. Centralized Management
Omada’s Software Defined Networking (SDN) platform allows you to manage routers, switches, and wireless access points from a single dashboard instead of configuring each device separately.
2. Cloud-Based Monitoring
You can remotely monitor and manage customer sites from anywhere using the Omada cloud platform and mobile app, making it ideal for MSPs and IT providers.
3. No Ongoing License Fees
Unlike some enterprise networking brands, Omada offers cloud management without recurring per-device licensing costs, reducing long-term ownership expenses.
4. Easy Multi-Site Deployment
Zero-touch provisioning allows devices to be shipped directly to a site and automatically configured when connected to the internet. This is particularly useful for chain stores, schools, and distributed businesses.
5. Complete Ecosystem
Omada offers:
- Security gateways/routers
- Managed PoE switches
- Indoor Wi-Fi access points
- Outdoor Wi-Fi access points
- Hardware controllers
- Software controllers
All devices integrate into a single management platform.
6. Strong Wi-Fi Performance
Modern Omada access points support:
- Wi-Fi 6
- Wi-Fi 6E
- Wi-Fi 7
- Seamless roaming
- Mesh networking
- High-density client environments
This makes them suitable for offices, schools, hotels, and apartment complexes.
7. Advanced Business Features
Omada supports:
- VLANs
- Guest networks
- VPNs
- Access Control Lists (ACLs)
- 802.1X authentication
- Traffic monitoring
- QoS
- Network segmentation
These features are important for cybersecurity and network performance.
8. Excellent Value for Money
Many installers compare Omada with:
- Ubiquiti
- Grandstream
- Cisco
- Aruba
Omada generally provides similar core SMB functionality at a lower hardware cost.
For Security & IT Professionals
Since you work with surveillance and IT systems, Omada is particularly attractive because:
- PoE switches can power IP cameras, access-control devices, intercoms, and APs.
- VLANs can isolate CCTV traffic from office networks.
- Remote management reduces support visits.
- Multi-site monitoring simplifies customer support.
- High-power PoE models support modern PTZ cameras and Wi-Fi bridges.
For many New Zealand installers, Omada is often the best balance of cost, features, and manageability, especially when compared with higher-priced enterprise networking brands.
