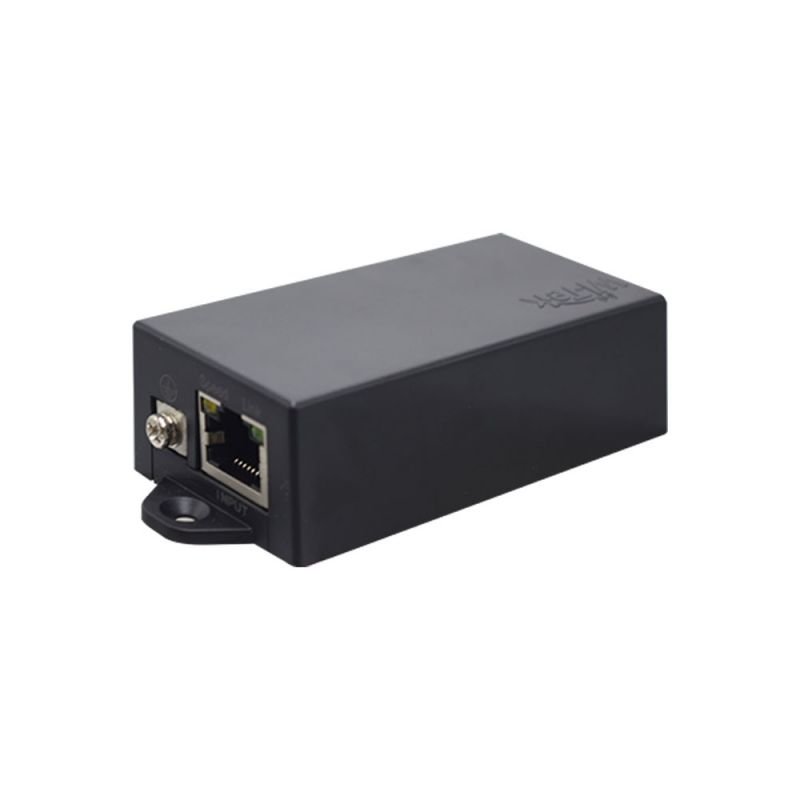

Omada Networks EAP215-BRIDGEKIT(V3.2) 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC Passive / 48VDC 802.3af PoE Input – 2* Passive PoE Injectors Included
Omada Networks EAP215-BRIDGEKIT(V3.2) 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC Passive / 48VDC 802.3af PoE Input – 2* Passive PoE Injectors Included
Key Features :-
- Up to 3.1 mi (5 km) Transmission Distance*
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box.
- Unique Design for Instant Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing.
- App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.

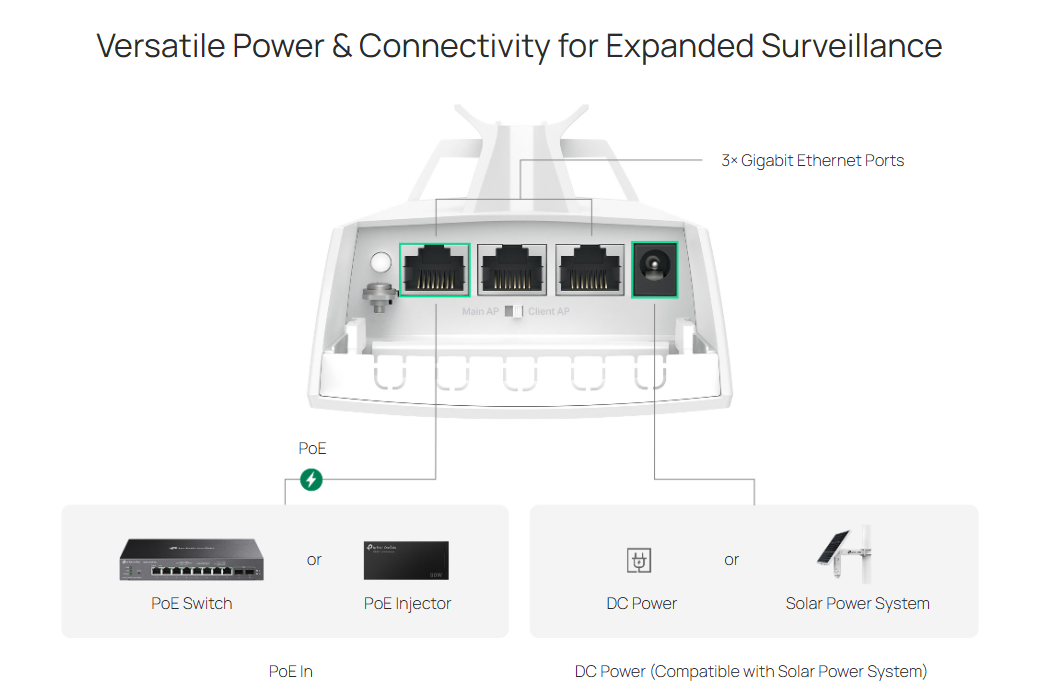

- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)
- 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
- Built for Tough Outdoor Conditions: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.**
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†
- Supports Omada EAP Mesh: Allows Omada Access Points (EAPs) to connect wirelessly to each-other, extending WiFi coverage without requiring Ethernet cables for every node.
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| DIP Switch | Role Switch |
| Power Supply | 12V DC / 802.3af PoE / 24V Passive PoE |
| Max. Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 3.1 × 2.4 × 10.9 in (79 × 60 × 276 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 14.0 dBi Horizontal:43°, Vertical: 18° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| PtMP | Supports up to 1:4 multi-bridge connections. |
| Coverage | 5000m(16400ft) |
| Transmission Distance | 5,000 m (3.1 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2×2 MU-MIMO DL • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP) <30dBm (5 GHz band3, EIRP)• FCC: <23.5dBm (5 GHz band1) <25dBm (5 GHz band4) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP215-Bridge KIT • Installation Guide • Mounting Kit |
| Lightning Protection | • Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
TL-EAP215-BRIDGEKIT Support Page
How to Setup and Configure TP-Link Omada EAP Mesh
How to establish a point-to-point connection with EAP-Bridge
TP-Link Omada Support Articles
Key Reasons to Choose Omada Networks
1. Centralized Management
Omada’s Software Defined Networking (SDN) platform allows you to manage routers, switches, and wireless access points from a single dashboard instead of configuring each device separately.
2. Cloud-Based Monitoring
You can remotely monitor and manage customer sites from anywhere using the Omada cloud platform and mobile app, making it ideal for MSPs and IT providers.
3. No Ongoing License Fees
Unlike some enterprise networking brands, Omada offers cloud management without recurring per-device licensing costs, reducing long-term ownership expenses.
4. Easy Multi-Site Deployment
Zero-touch provisioning allows devices to be shipped directly to a site and automatically configured when connected to the internet. This is particularly useful for chain stores, schools, and distributed businesses.
5. Complete Ecosystem
Omada offers:
- Security gateways/routers
- Managed PoE switches
- Indoor Wi-Fi access points
- Outdoor Wi-Fi access points
- Hardware controllers
- Software controllers
All devices integrate into a single management platform.
6. Strong Wi-Fi Performance
Modern Omada access points support:
- Wi-Fi 6
- Wi-Fi 6E
- Wi-Fi 7
- Seamless roaming
- Mesh networking
- High-density client environments
This makes them suitable for offices, schools, hotels, and apartment complexes.
7. Advanced Business Features
Omada supports:
- VLANs
- Guest networks
- VPNs
- Access Control Lists (ACLs)
- 802.1X authentication
- Traffic monitoring
- QoS
- Network segmentation
These features are important for cybersecurity and network performance.
8. Excellent Value for Money
Many installers compare Omada with:
- Ubiquiti
- Grandstream
- Cisco
- Aruba
Omada generally provides similar core SMB functionality at a lower hardware cost.
For Security & IT Professionals
Since you work with surveillance and IT systems, Omada is particularly attractive because:
- PoE switches can power IP cameras, access-control devices, intercoms, and APs.
- VLANs can isolate CCTV traffic from office networks.
- Remote management reduces support visits.
- Multi-site monitoring simplifies customer support.
- High-power PoE models support modern PTZ cameras and Wi-Fi bridges.
For many New Zealand installers, Omada is often the best balance of cost, features, and manageability, especially when compared with higher-priced enterprise networking brands.
