Uniview IPC3636SE-ADF28K-WP-I1

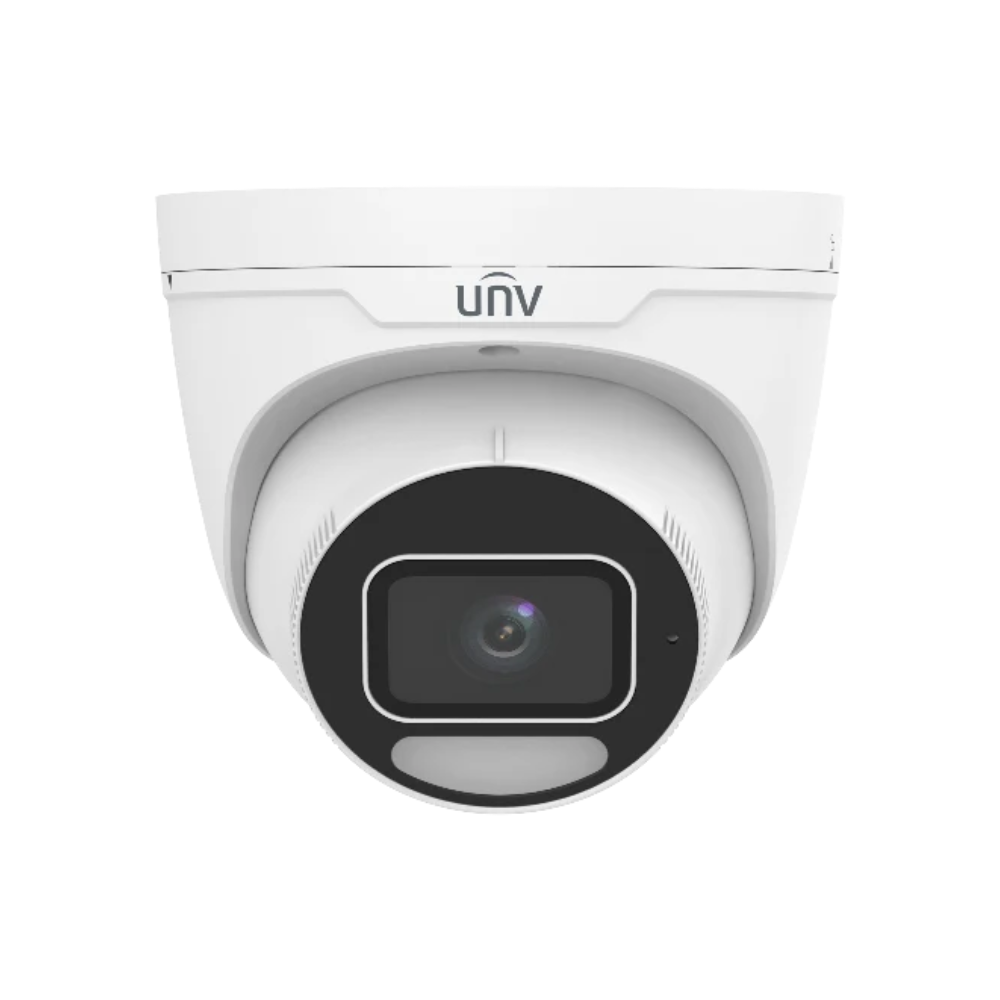

Uniview IPC3636SE-ADF28K-WP-I1 Prim-series 6MP ColorHunter AI (Artificial Intelligence) Wise-ISP PoE IP Full-Colour (30m White-Light-LED) Ultra-Low-Light 130dB Ultra-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Mic – 110.4° Horizontal Wide Angle FoV
Uniview IPC3636SE-ADF28K-WP-I1 Prim-series 6MP ColorHunter AI (Artificial Intelligence) Wise-ISP PoE IP Full-Colour (30m White-Light-LED) Ultra-Low-Light 130dB Ultra-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Mic – 110.4° Horizontal Wide Angle FoV
Key Features :-
- High quality image with 6MP, 1/1.8″CMOS sensor
- 6MP (3072*2048) @ 30fps; 4MP (2688*1520) @ 30/25fps; 4MP (2560*1440) @ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @ 30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise-ISP technology ensures 24-hour full-color images
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.; accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent face capture
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)
- 130dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic
- White Light, up to 30m warm light distance
- Supports 512 G Micro SD card
- IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution | 6 MP |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour: 0.0003 lux ( F1.0, AGC ON) |
| Shutter | Auto/Manual,1 to 1/100000 s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 110.4° |
| Field of View (V) | 60.5° |
| Field of View (D) | 115.2° |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Detect) | 43.4m(142.5ft) |
| DORI Distance (Observe) | 17.4m(57.0ft) |
| DORI Distance (Recognize) | 8.7m(28.5ft) |
| DORI Distance (Identify) | 4.3m(14.3ft) |
| Illuminator | |
| Supplemental Light | Warm light |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 6MP (3072*2048) ), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U‑code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple Streams |
| Image | |
| Auto Scene Match (ASM) | Support |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non‑motor vehicle and vehicle) |
| Statistical Analysis | N/A |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two‑way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV‑Link, UNV‑Link Pro, EZStation |
| Web Browser | Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug‑in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p‑p], 1 Output: impedance 600 Ω, amplitude 2 V [p‑p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built‑in Mic | Support |
| Built‑in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130) FCC (FCC 47 CFR part15 B) |
| Safety | CE‑LVD (EN 62368‑1) CB (IEC 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 4.5W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø129 x 110mm (Ø5.1” x 4.3”) (Ø x H) |
| Weight | 0.67kg (1.47lb) |
| Material | Metal |
| Working Environment | ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) |
| Storage Environment | ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
