ZKDigimax DG01-A2P40

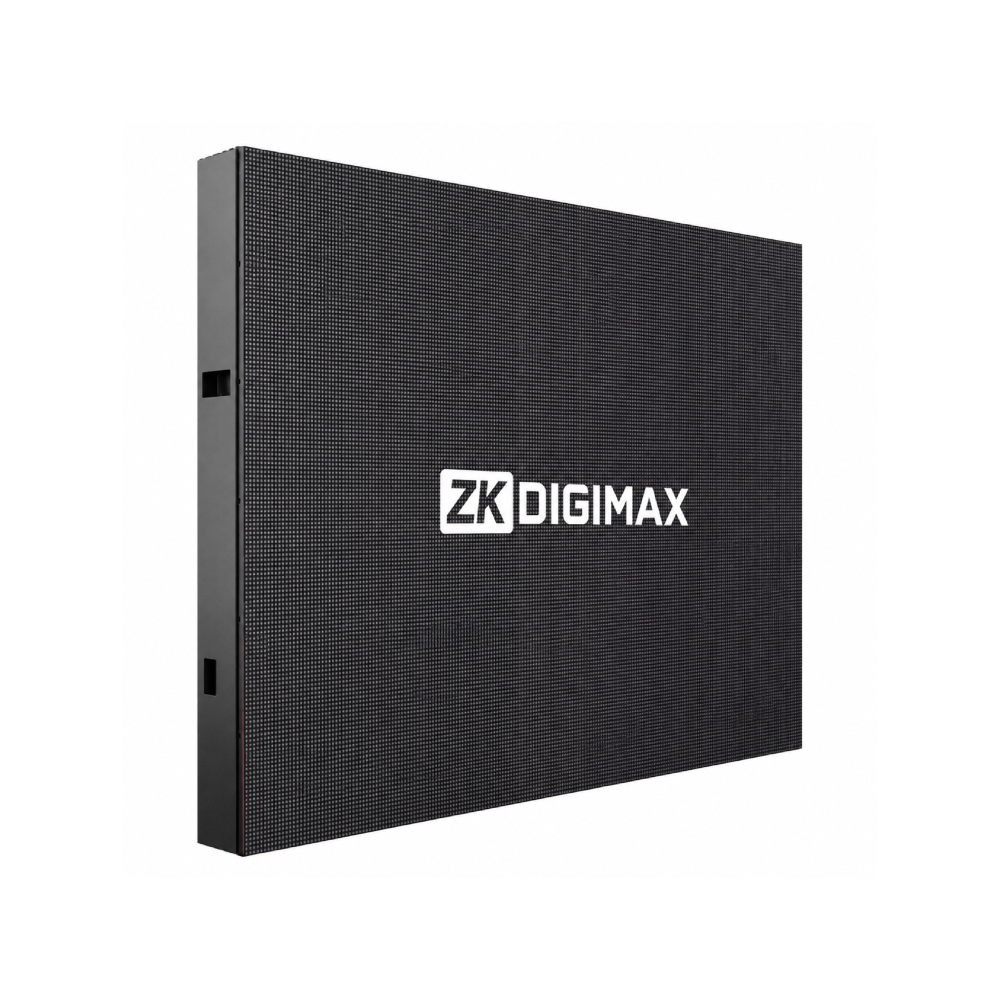

ZKDigimax DG01-A2P40 IP65-Rated Weatherproof Outdoor LED Cabinet for Digital Signage – Panel Size: 960mm * 960mm * 100mm – 4MM Pixel Pitch – Can Stack Multiple Cabinets to Create a Large Custom-Size Display – Each Cabinet Includes 18 * DG01-A2P40M LED Modules + 1* LED Data Receiving Card + 1* PSU + Power & Data Cables For LED Modules
ZKDigimax DG01-A2P40 IP65-Rated Weatherproof Outdoor LED Cabinet for Digital Signage – Panel Size: 960mm * 960mm * 100mm – 4MM Pixel Pitch – Can Stack Multiple Cabinets to Create a Large Custom-Size Display – Each Cabinet Includes 18 * DG01-A2P40M LED Modules + 1* LED Data Receiving Card + 1* PSU + Power & Data Cables For LED Modules
The outdoor LED display possesses the characteristics of high brightness, durability, waterproofness, energy efficiency, and environmental friendliness. It plays a crucial role in the domains of outdoor media, advertising, cultural transmission, and entertainment while contributing significantly to urban construction and sports events.
Key Features :-
- Sharp image quality: With high pixel density, the screen displays detailed, sharp images and vivid colors.
- Outstanding Brightness: High brightness ensures clear images even in direct sunlight.
- High durability: Sturdy design, resistant to harsh weather, ensuring stable operation in all conditions.
- Easy installation and maintenance: Modular design makes installation, maintenance and replacement simple and quick.
- Energy Saving: Advanced LED technology saves energy and reduces operating costs.
ZKDigimax DG01-A2P40 Outdoor LED Cabinets can be used in many different fields:
- Impressive outdoor advertising: Capture customers’ attention with promotional images and videos.
- Professional Events and Performances: Create impressive displays at concerts, sporting events, exhibitions.
- Traffic Control: Instant impact. Smarter traffic control with outdoor LED
- Advertising / Retail: Capture attention in seconds with vibrant outdoor LED screens built for all-weather advertising.
- Public Information / Smart City: Inform, guide, and engage the public with high-visibility outdoor LED display solutions.
- Modern signs and billboards: Replace traditional signs, create impression and attract attention.
Model |
DG01 -A2P25 |
DG01-A2P40 |
DG01-A2P50 |
DG01-A2P80 |
DG01 -A2P100 |
Cabinet Parameters |
|||||
| Module quantity | 3*6 | ||||
| Dimensions (W × H × D) |
960*960*100mm | 960*960*100mm | 960*960*100mm | 960*960*100mm | 960*960*100mm |
| Resolution | 384*384 | 240*240 | 192*192 | 120*120 | 96*96 |
| Size (m²) | 0.9216 | 0.9216 | 0.9216 | 0.9216 | 0.9216 |
| Weight | 18KG | 18KG | 18KG | 18KG | 18KG |
| Cabinet material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance |
| Ingress Protection | Front IP65 | Front IP65 | Front IP65 | Front IP65 | Front IP65 |
Physical parameters |
|||||
| Pixel pitch | 2.5mm | 4.0mm | 5.0mm | 8.0mm | 10.0mm |
| Module size | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm | L320 * H160 *T17.2mm |
| Module resolution | 128*64dots | 80*40dots | 64*32dots | 40*20dots | 32*16dots |
| Module weight | 380±10g | 410±10g | 410±10g | 420±10g | 420±10g |
| Pixels density | 160000Dot/m² | 62500Dot/m² | 40000Dot/m² | 15625Dot/m² | 10000Dot/m² |
| Scan mode | 1/16 scan | 1/10 scan | 1/8 scan | 1/5 scan | 2s |
| Port type | HUB75 | HUB75 | HUB75 | HUB75 | HUB75 |
Optical parameters |
|||||
| Brightness | ≥5000cd/m² | ≥5000cd/m² | ≥5000cd/m² | ≥5000cd/m² | ≥5000cd/m² |
| Color temperature | ≥10000K | ≥10000K | ≥10000K | ≥10000K | ≥10000K |
| Best viewing angle | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. | 120°(W) 120°(H)Deg. |
| Module consumption | ≤30W | ≤40W | ≤40W | ≤30W | ≤27W |
| Frame frequency | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz | ≥60Hz |
| Refresh frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Lifespan | 100000Hours | 100000Hours | 100000Hours | 100000Hours | 100000Hours |
| Working temperature | -10~60°C | -10~60°C | -10~60°C | -10~60°C | -10~60°C |
| Working humidity | 10%~70%RH | 10%~70%RH | 10%~70%RH | 10%~70%RH | 10%~70%RH |
|
|
|||||
High Brightness for Outdoor Visibility
Outdoor LED displays must remain visible in direct sunlight. ZKDIGIMAX outdoor LED solutions are designed for high-brightness operation, making content readable during the day and at night. This is critical for roadside advertising, retail storefronts, and public information displays.
Centralized Cloud Management
One of the biggest advantages is the ability to manage multiple screens remotely from a centralized cloud platform. Businesses can update promotions, announcements, and advertisements across many locations in real time without visiting each site.
AI-Driven Analytics
ZKDIGIMAX promotes AI-enabled capabilities such as:
- Audience demographic analysis
- Customer identification and profiling
- Engagement monitoring
- Content optimization based on viewer characteristics
This allows advertisers and retailers to make decisions based on actual audience data rather than assumptions.
End-to-End Solution
Unlike vendors that only sell displays, ZKDIGIMAX positions itself as a complete digital transformation platform, offering:
- LED displays
- Digital signage CMS
- AI analytics
- Managed services
- Maintenance and support
- Hardware and software integration
This can reduce the complexity of working with multiple suppliers.
Scalability
Their cloud infrastructure is designed to support large deployments across multiple branches and locations, making it suitable for:
- Retail chains
- Quick-service restaurants
- Shopping centres
- Hospitality venues
- Corporate campuses
Real-Time Content Scheduling
Users can:
- Schedule campaigns in advance
- Push emergency announcements instantly
- Run different content by location or time of day
- Manage screens through web and mobile interfaces
This flexibility is a major advantage over static signage.
Best Use Cases
- Outdoor advertising billboards
- Shopping centre LED displays
- Transport hubs and public information boards
- Stadium and event screens
- Retail storefront promotions
- Corporate branding displays
