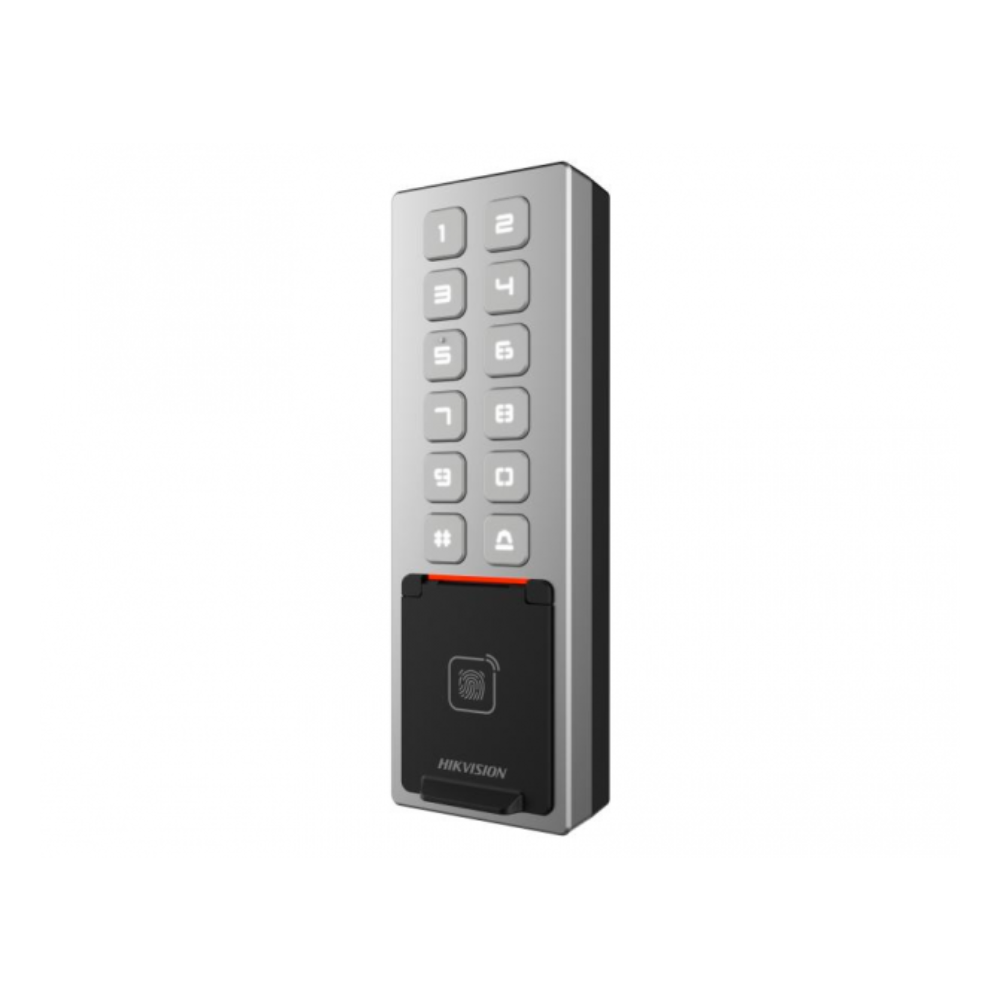

Hikvision DS-K1T805MBFWX

System

• Operating System: Linux

Audio

• Audio Output: 1 built-in buzzer

Network

• Bluetooth: Support
• Wired Network: 10/100 Mbps self-adaptive
• Wi-Fi: 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i

Interface

• RS-485: 1, supports OSDP
• Network Interface: 1
• Wiegand: Wiegand 26/34
• Lock Control: 1
• Exit Button: 1
• Door Contact Input: 1
• Alarm Input: 2
• Alarm Output: 1
• TAMPER: 1

Capacity

• Card Capacity: 10,000
• Fingerprint Capacity: 3000
• Event Capacity: 100,000

Authentication

• Card Type: M1 card
• Card Reading Distance: 0 to 4 cm
• Card Reading Duration: ＜ 1 s
• Fingerprint Module: Optical fingerprint module
• Fingerprint Comparing Mode: 1:1 and 1:N
• Fingerprint Recognition Duration: ＜ 1 s

Function

• Hik-Connect: Support
• Configuration Via Web Browser: Support PC web configuration and mobile web operation

General

• Power Supply: 12VDC/1 A
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working HumidityL 0% to 90% (no condensing)
• Dimensions: 57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″)
• Power Consumption: ≤ 12 W
• Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian

Recommendations

• Use a Wired Network / Ethernet instead of Wi-Fi whenever possible.
• Ensure the device is connected to a 2.4 GHz Wi-Fi network (not 5 GHz).
• Assign a static IP address.
• Upgrade to the latest firmware.

Using Hikvision access control systems can be advantageous when you want an integrated solution that combines door access, video surveillance, intercoms, alarms, and attendance management under a single platform.

Main reasons to use Hikvision access control

1. Unified security platform

Hikvision access controllers integrate directly with Hikvision:

• IP cameras
• Video intercoms
• NVRs
• Alarm systems
• Time & attendance devices

Using Hikvision software, events such as card swipes, denied access, door forced-open alarms, and facial recognition matches can be viewed alongside video footage.

2. Multiple authentication methods

Depending on the model, users can authenticate using:

• RFID cards
• PIN codes
• QR codes
• Mobile credentials
• Bluetooth
• Fingerprints
• Facial recognition

This provides flexibility for different security levels and budgets.

3. Strong video integration

One of Hikvision’s biggest strengths is linking access events to camera footage:

• View video associated with a door event.
• Search footage by cardholder.
• Investigate tailgating or unauthorized access.
• Receive pop-up video when access alarms occur.

4. Facial recognition capabilities

Advanced terminals such as the DS-K1T673 Series and DS-K1T671 Series support:

• Fast face authentication
• Mask detection
• Anti-spoofing
• Card + face authentication

This reduces reliance on physical cards and can improve user convenience.

5. Scalability

Hikvision systems can scale from:

• A single office door
• Small commercial premises
• Schools
• Warehouses
• Multi-building sites

Controllers are available in:

• 1-door
• 2-door
• 4-door
• 8-door configurations

allowing expansion as requirements grow.

6. Cost-effective solution

Compared with enterprise systems such as:

• Gallagher
• LenelS2
• Genetec

Hikvision often delivers a lower hardware and licensing cost while providing many features required by small and medium businesses.

7. Time and attendance functions

Many Hikvision terminals can also record:

• Staff attendance
• Shift start/end times
• Late arrivals
• Reports and exports

This can eliminate the need for a separate attendance system.

8. Mobile management

Administrators can:

• Add users
• Issue credentials
• Review events
• Unlock doors remotely

through Hikvision management software and supported mobile applications.

Best applications

Hikvision access control is well suited to:

• Offices
• Schools
• Warehouses
• Apartment buildings
• Retail stores
• Small to medium commercial sites
