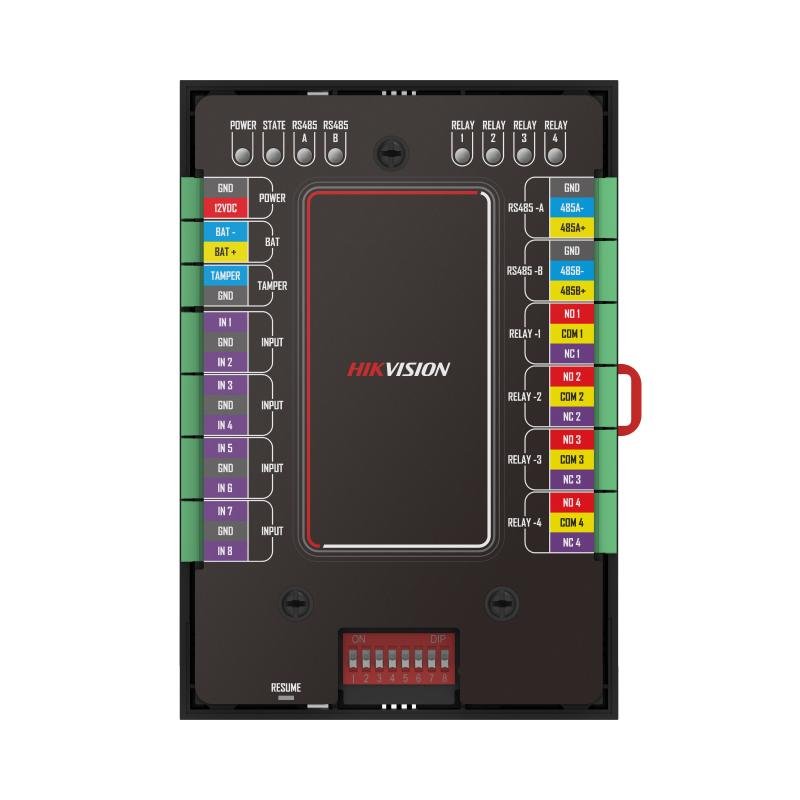

Hikvision DS-K2M0012X

System

• Operating system: MCU

Interface

• Alarm input: 8
• Alarm output: 4
• TAMPER: 1
• RS-485: 2 – 2 for access controller

General

• Indicator: 1 for indicating power status, 1 for running status, 2 for communication status, and 4 for alarm output
• Battery: Charge and discharge
• Power supply: 12 ± 15% VDC
• Power consumption: ≤5 W
• Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
• Working humidity: 0% to 90% (No condensing)
• Installation: Installation with guide rail

Function

• Configuration via Web browser: Support via access controller

Using Hikvision access control systems can be advantageous when you want an integrated solution that combines door access, video surveillance, intercoms, alarms, and attendance management under a single platform.

Main reasons to use Hikvision access control

1. Unified security platform

Hikvision access controllers integrate directly with Hikvision:

• IP cameras
• Video intercoms
• NVRs
• Alarm systems
• Time & attendance devices

Using Hikvision software, events such as card swipes, denied access, door forced-open alarms, and facial recognition matches can be viewed alongside video footage.

2. Multiple authentication methods

Depending on the model, users can authenticate using:

• RFID cards
• PIN codes
• QR codes
• Mobile credentials
• Bluetooth
• Fingerprints
• Facial recognition

This provides flexibility for different security levels and budgets.

3. Strong video integration

One of Hikvision’s biggest strengths is linking access events to camera footage:

• View video associated with a door event.
• Search footage by cardholder.
• Investigate tailgating or unauthorized access.
• Receive pop-up video when access alarms occur.

4. Facial recognition capabilities

Advanced terminals such as the DS-K1T673 Series and DS-K1T671 Series support:

• Fast face authentication
• Mask detection
• Anti-spoofing
• Card + face authentication

This reduces reliance on physical cards and can improve user convenience.

5. Scalability

Hikvision systems can scale from:

• A single office door
• Small commercial premises
• Schools
• Warehouses
• Multi-building sites

Controllers are available in:

• 1-door
• 2-door
• 4-door
• 8-door configurations

allowing expansion as requirements grow.

6. Cost-effective solution

Compared with enterprise systems such as:

• Gallagher
• LenelS2
• Genetec

Hikvision often delivers a lower hardware and licensing cost while providing many features required by small and medium businesses.

7. Time and attendance functions

Many Hikvision terminals can also record:

• Staff attendance
• Shift start/end times
• Late arrivals
• Reports and exports

This can eliminate the need for a separate attendance system.

8. Mobile management

Administrators can:

• Add users
• Issue credentials
• Review events
• Unlock doors remotely

through Hikvision management software and supported mobile applications.

Best applications

Hikvision access control is well suited to:

• Offices
• Schools
• Warehouses
• Apartment buildings
• Retail stores
• Small to medium commercial sites
