HiLook HA-KIT-H1

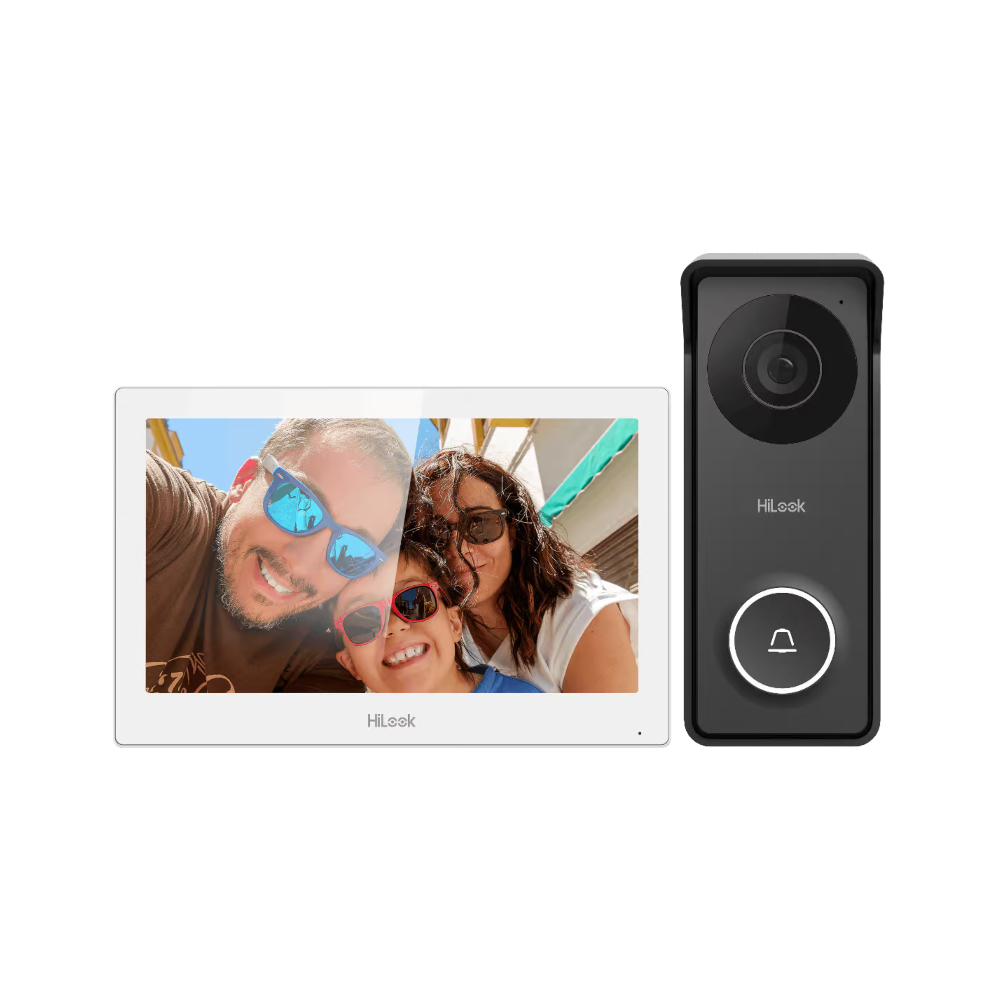

HiLook HA-KIT-H1 4-Wire Hybrid HD Video Intercom Kit – Includes 1 * Outdoor Intercom Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 12VDC PSU – One-Lock Control – Works With Hik-connect App
SKU: HA-KIT-H1
Categories: HiLook Video Intercoms, Video Intercoms
Tags: 4-Wire, Hik-Connect, HiLook, Kit, Video Intercom
HiLook HA-KIT-H1 4-Wire Hybrid HD Video Intercom Kit – Includes 1 * Outdoor Intercom Station + 1 * Indoor 7″ Touchscreen Monitor with WiFi + 1 * 12VDC PSU – One-Lock Control – Works With Hik-connect App
Key Features :-
-
- Hik-Connect mobile control
- HD TVI video quality
- 7 inch touch screen
- Plug & Play
Door station/Video parameters
- Supplement light: IR light, up to 3 m
- Resolution: Stream resolution: 1280 * 720 @ 60fps
- FOV: Horizontal: 117°, Vertical: 70°, Diagonal: 141°
Door station/Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio output: 1 built-in loudspeaker
Door station/Capacity prameters
- Linked indoor station capacity: 3
- Sub door station capacity: 1
- Card capacity: /
Door station/Device interfaces
- Lock control: 1 relay, max 30 V 1 A
- Power supply input: 12 VDC
- Debugging port: 1
- Four-Wire interface: 1
Door station/General
- Button: 1 physical button(s)
- Indicator: /
- Power supply: 12VDC
- Power consumption: ≤ 4 W
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 10% to 90% (no-condensing)
- Application environment: Outdoor
- Dimension (W × H × D): 55 mm × 145 mm × 24 mm (2.17″ × 5.71″ × 0.94″)
- Installation: Surface mounting
- Protective level: IP65, IK08
- Material: Aluminum alloy and Plastic
- Without package: 200 g (0.44 lb)
Indoor monitor/System parameters
- Operation system: Embedded Linux operation system
- RAM: 128 MB
- ROM: 32 MB
- Processor: Embedded high performance processor
Indoor monitor/Display parameters
- Type: Colorful TFT
- Resolution: 1024 × 600
- Viewing Angle: Horizontal 160°, vertical 130°
- Contrast: 700 (Typ)
- Luminance: 250 cd/m² （Typ）
- Operating method: Capacitive touch screen
- Screen size: 7-inch
Indoor monitor/Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: 64 Kps
- Audio compression standard: G.711U, G.711A
- Audio quality: Noise suppression and echo cancellation
Indoor monitor/Capacity parameters
- Linked network camera capacity: /
- Linked indoor extensions capacity: 2
- Linked door-phone capacity: 2
- Linked analog camera: 1
Indoor monitor/Network parameters
- Wi-Fi: Wi-Fi 802.11 b/g/n
Indoor monitor/Device interfaces
- Network interface: /
- RS-485: /
- Alarm input: 2
- Alarm output: /
- Power supply input: 12VDC
- TF card: Support TF card, up to 128 G
- Debugging port: 2
- Four-Wire interface: 4
- Relay: /
Indoor monitor/General
- Button: 0 physical button
- Power supply: 12 VDC
- Power consumption: ≤ 5 W
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 175 mm × 113.5 mm × 18.1 mm (6.89″ × 4.47″ × 0.71″)
- Installation: Surface mounting
- Application environment: Indoor
- Without package: 260 g (0.573 lb)
- Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
