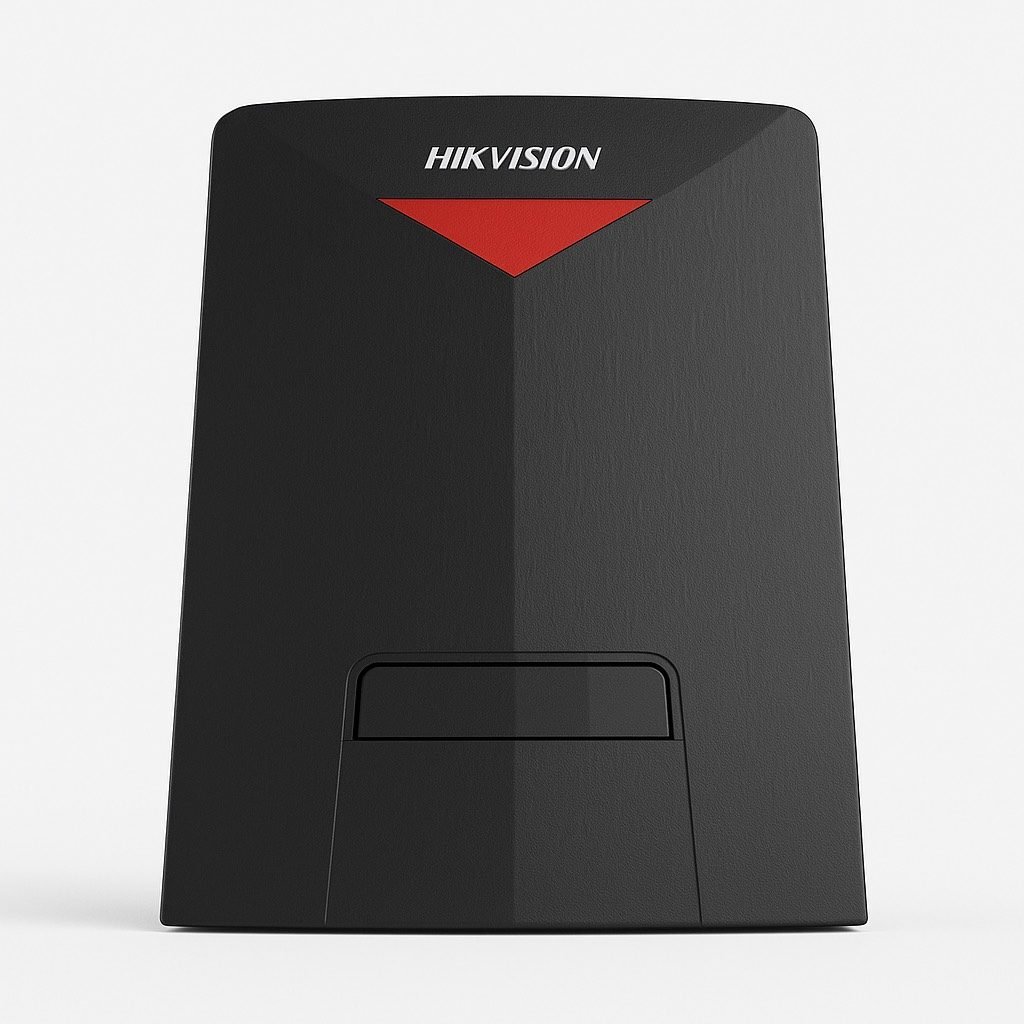

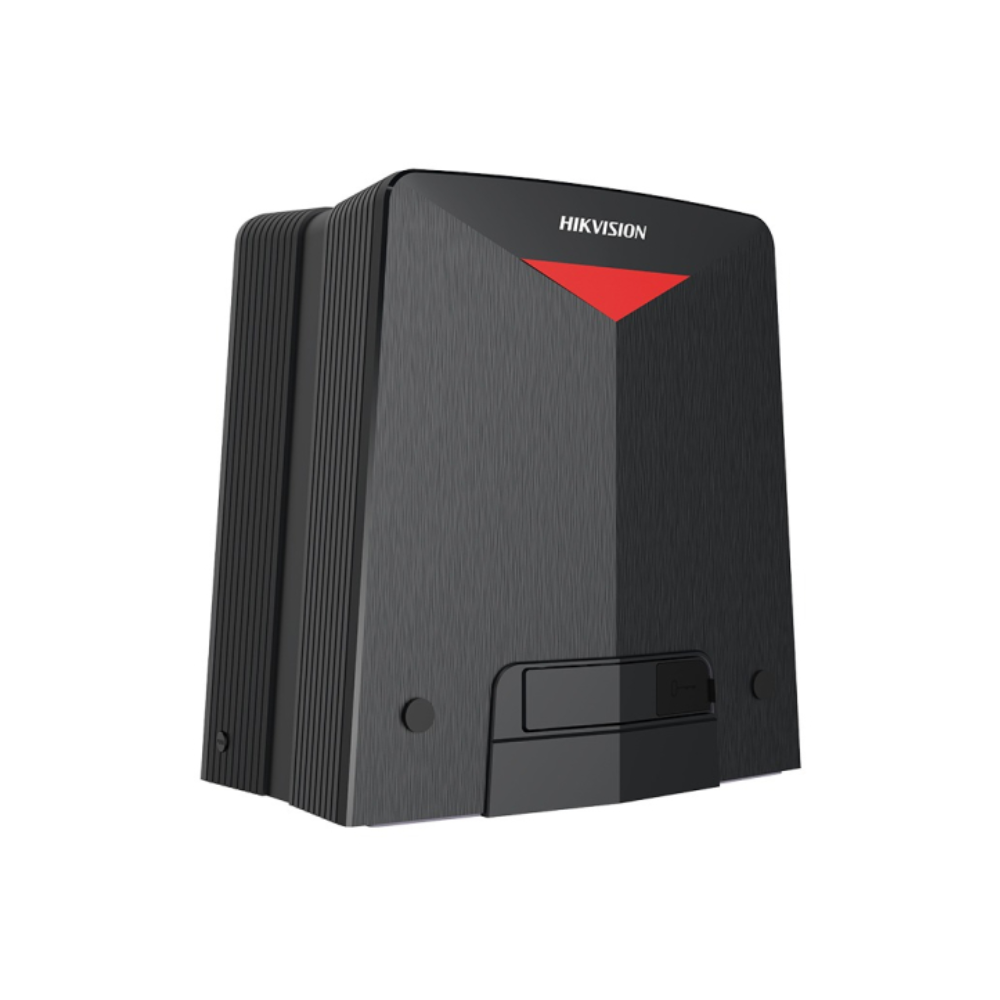

Hikvision DS-K3GL606WX-WB

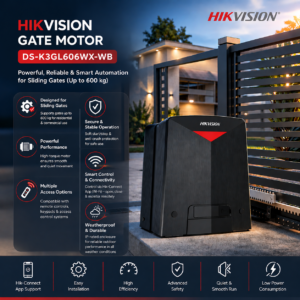

Hikvision DS-K3GL606WX-WB Smart Gate Opener / Motor – Suitable For Sliding Gates (Up to 600Kgs) – Built-in WiFi (2.4GHz) & Ethernet Port – Supports Control From Hik-Connect Mobile Phone App – Fast Speed – Max 36m / Minute – Inlcudes 2 * DS-PC2002-WBCKV Remotes
Hikvision DS-K3GL606WX-WB Smart Gate Opener / Motor – Suitable For Sliding Gates (Up to 600Kgs) – Built-in WiFi (2.4GHz) & Ethernet Port – Supports Control From Hik-Connect Mobile Phone App – Fast Speed – Max 36m / Minute – Inlcudes 2 * DS-PC2002-WBCKV Remotes
Motor & Physical Specs
- Gate Capacity: Supports sliding gates weighing up to 600 Kg.
- Opening Speed: Fast and efficient operation at up to 36 meters per minute (0.6 meters/second).
- Motor & Durability: Features a durable DC brush motor with a Mean Cycles Between Failure (MCBF) of ≥ 0.8 million times.
- Power Supply: 100 to 240 VAC mains power with support for dual 12V 7AH backup batteries to ensure operation during power outages.
Smart & Remote Control
- App Integration: Fully integrated with the Hik-Connect ecosystem, allowing you to control and monitor the gate from anywhere via your mobile device using Hik-Connect app.
- Keyfob Access: Supports up to 3,000 wireless remote keyfobs (433 MHz) with an operating range of up to 50 meters.
- Connectivity: Built-in WiFi (2.4GHz wireless) and LAN interface for seamless network management.
Access Control & Security
- Multiple Verification Methods: Can act as an independent access control system, integrating with external card readers (including face, PIN, QR code, and Bluetooth).
- Massive User Capacity: Holds up to 250,000 access cards and 500,000 event records.
- Ecosystem Linking: Easily links with external alarms, CCTV (including License Plate Recognition/ANPR cameras), and intercoms for automated entry.
Setup & Maintenance
- NFC & Mobile Setup: Configuration can be done via a mobile web browser by using AP mode and tapping a smartphone to the opener’s NFC tags.
- Auto-Calibration: Supports automated open/close learning for effortless initial calibration without manual limit setup.
- Self-Diagnostics: Capable of running component status diagnostics to catch maintenance issues early.
Hikvision gate motors are typically chosen when you want a fully integrated gate automation and security solution rather than a standalone gate operator.
Why use a Hikvision gate motor?
1. Integration with the Hikvision ecosystem
A major advantage is integration with:
- IP cameras
- Video intercoms
- Access control systems
- ANPR (Automatic Number Plate Recognition)
- Mobile apps
For example, a vehicle detected by a Hikvision ANPR camera can automatically open the gate for authorized number plates, while visitors can request entry through a Hikvision intercom.
2. Centralized management
Using HikCentral Professional, administrators can manage:
- Access permissions
- Vehicle access
- Gate events
- Video verification
- Alarm notifications
from a single platform.
3. LPR / ANPR-based vehicle access
When paired with Hikvision LPR / ANPR cameras, the system can:
- Open gates automatically for approved vehicles
- Maintain vehicle access logs
- Generate reports
- Reduce dependence on remotes and access cards
This is useful for:
- Commercial premises
- Apartment complexes
- Industrial sites
- Staff parking areas
4. Mobile phone control
Users can open gates remotely through supported Hikvision mobile solutions, making it easier to:
- Admit visitors
- Manage deliveries
- Control access when off-site
5. Video verification
Before opening a gate, operators can verify:
- The vehicle
- The driver
- The surrounding area
using linked cameras, improving security compared with basic remote-controlled systems.
6. Suitable for integrated security projects
Hikvision gate motors work particularly well when the site already uses:
- Hikvision / HiLook CCTV
- Hikvision / HiLook intercoms
- Hikvision access control
This reduces integration complexity and training requirements.
